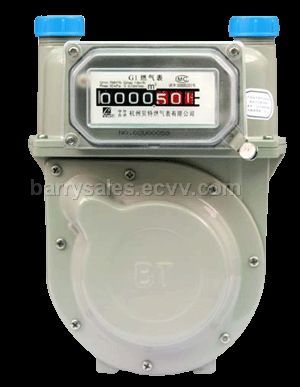

PREPAID GAS METERS 1.6

SPECIFICATION:
Case: Die cast aluminum body
Nominal flow-rate (Qn): 1 m3/h
Maximum flow-rate (Qmax): 1.6 m3/h
Minimum flow-rate (Qmin): 0.016 m3/h
Total pressure absorption:≤160 Pa
Operation pressure range: 0.5-30 kPa
Cyclic volume:0.7 l/rev.
Permissible error: Qmin≤Q<0.1Qmax 3%
                0.1Qmax≤Q≤Qmax 1.5%
Min. recording reading: 0.2 dm3
Max. recording reading: 9999.999 m3
Operation ambient temperature: -20-+40
Service life: ≥10years
Storage temperature: -20-+50
Central distance: 130 mm
Connection thread: M30x2mm (or by customized)
Dimension:: H234xW174xD123 mm
Weight: 1.95kg
Surface: Polyester powder plastics coating (gray)
Note: Printed index cover of polycarbonate

Place of Origin:	Shanghai Shanghai in China
Model No:	LD-GM001
