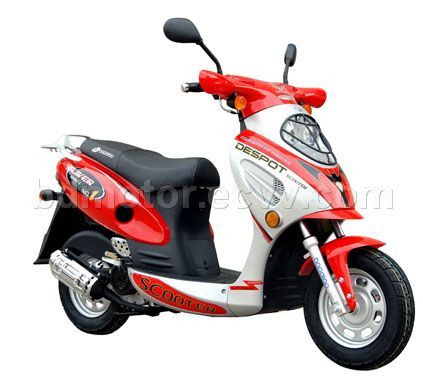

Scooter (BD50QT-2)

Detailed Product Description

* BD50QT- 2 scooter

* Dimension ((L x W x H) mm): 1620x560x860

* Wheel base (mm): 1300

* Min. Ground Clearance (mm): 110

* Dry Weight: 90kg

* Maximum weight capacity: 75kg

* Engine Type: Single-cylinder, air-cooled, four-stroke

* Engine model: 139QMB

* Bore xStroke: 39. 0mm×41. 5mm

* Displacement: 49mL

* Maximum Power: 2. 3kW/rpm(8000＋400r/min)

* Maximum Torque: 2. 9N. M/rpm(6000－350r/min)

* Lubrication: Pressure/splash

* Start: Electric start/Kick start

* Ignition: C. D. I

* Max. Speed (km/h): 45

* Fuel tank Maximum capacity: 5L

* Economical Fuel Consumption (I/100km): 1. 9L/100km

* Front Type Size and Air Pressure: 3. 50-10/225KPa

* Rear Type Size and Air Pressure: 3. 50-10/250KPa

* Front brake type: disk type

* Rear brake type: drum type

* 40’HQ: 87 sets

Place of Origin:	China\|
Model No:	BD50QT-2
