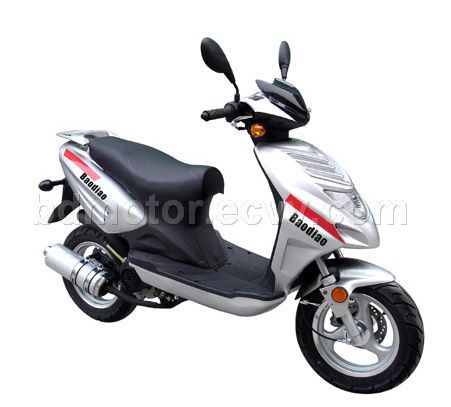

Gas Scooter (BD50QT-4-VI)
* 50cc or 125cc or 150cc
* Dimension ((L x W x H) mm): 1680x570x860
* Wheel base (mm): 1285
* Min. Ground Clearance (mm): 110
* Dry Weight: 97kg
* Maximum weight capacity: 150kg
* Engine Type: Single-cylinder, air-cooled, four-stroke
* Engine model: 152QMI
* Bore xStroke: 52. 4mm x 57. 8mm
* Displacement: 125mL
* Maximum Power: 5. 8kW/rpm(7000+500r/min)
* Maximum Torque: 8. 8N. M/rpm (6000+500r/min)
* Start: Electric start/Kick start
* Max. Speed (km/h): 80
* Fuel tank Maximum capacity: 5L
* Economical Fuel Consumption (1/100km): 2. 1L/100km
* Front Type Size and Air Pressure: 120/70-12/225KPa
* Rear Type Size and Air Pressure: 120/70-12/250KPa
* Front brake type: disk type
* Rear brake type: drum type
* 40' HQ: 84 sets
