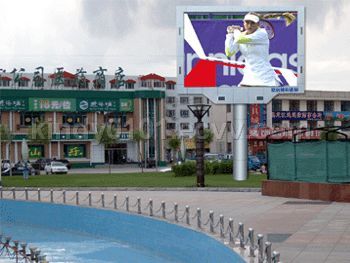

outdoor led display

Detailed Product Description

Key Specifications/Special Features: Working voltage: 220V ?15% AC Working temperature: -20deg-- + 50 deg, storage: -40deg-- + 85deg Pixel Pitch: 16mm Modular Size: 1024mm x 768mm Pixel Density: 3906 dots/m2 Pixel Configuration: 2R1PG1B Dots/Panel: 64 x 48 dots Physical Resolution: 3072 dots/Cabinet Weight: 60kg/m2 Viewing distance:15 -- 300m Viewing Angle: Horizontal: 30?-110? Vertical:30?-50,optional Maximum Power Consumption: <=2000W/ m2 Control Method: Synchronization Graphics Board: DVI Drive Method: Static Frame Rate: >=60Hz Refresh Rate: >=180Hz Grey Scale: Realize 16.7M Color Calibrated Brightness: >=6500 cd/ m2 Brightness Adjust: Software 32 Grade Adjustable IPC: WIN98, WINXP, WIN2000, etc. Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc. Adopted Control System: PCTV Board + DVI Board + Control Board + Optical Fiber Transmission MTBF: > 1,000 hours Tenure life: >50,000 hours Dead Dot: <0.0002 PC Display Method: 1024 X 768 Software: LED Video (MDK) Payment Details: Payment Terms: 30% deposit, balance 70% before delivery Minimum Order: 1 to 99 Square meters Delivery Details: FOB Port: Shenzhen Lead Time: 10 - 15 days Country of Origin: China (mainland) Brand Name: LCJH Main Export Markets: all over the world
