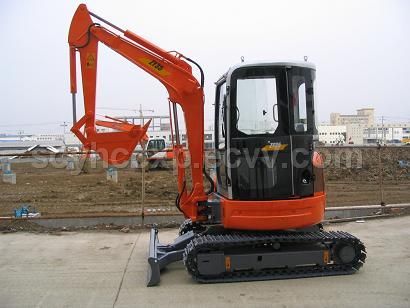

crawler excavator

Technical Specification
  Operating Weight:3800kg
  Engine Power:19.8kw/2200rpm
  Bucket Capacity:0.12m3
  Maximum Digging Depth:3126mm
  Maximum Digging Height:4666mm
  Maximum Dumping Height:3176mm
  Maximum Digging Radius:5197mm
  Front Minimum Swing Radius:2139mm
  Frame Width:1700mm
  Undercarriage Width:1700mm
  Total Length of Track:2216mm
  Transportation Length:4710mm
  Transportation Width:1700mm
  Transportation Height:2685mm
  Clearance Under Counterweight:578mm
  Minimum Ground Clearance:300mm
  Hydraulic System Working Pressure:25Mpa
  Variable Pump Displacement:45cm3/r
  Maximum Digging Force of Bucket:23.6KN
  Maximum Digging Force of Arm:23.15KN
  Grade Ability:32
  Ground Pressure:0.29*9.8N/cm3
  Travel Speed:4.56/2.4km/h
  Maximum Drawbar Pull:21.34KN
  Swing Speed of Upper Structure 12RPM

Place of Origin:	Sichuan Chengdu in China
Model No:	TE35
