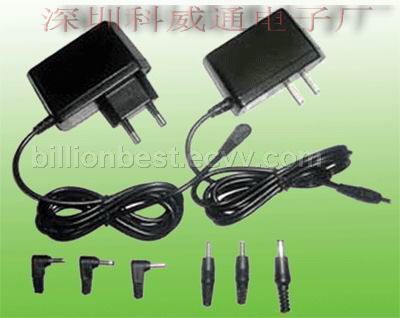

model: KWT-K003A/K003B
specification:
AC/DC simplex output
L*W*H (units: mm):
70*28*41
output(voltage/current) : 3V-12V/1A
suitable for voltage and current:(5V2A, 5V1.5A, 12V500mA, 5V800mA, 9V500mA, 12V400mA, 12V800mA, 6V450mA, 6V1A, 7.5V1A, 5V1A, 4.5V1A, 12V1A.....)
power:
12W
function:
this product suitable for net cat. router. telephone. portable DVD. small household appliance. network adapter. bluetooth adapter. chargers....
have following functions:
1, steady trustiness, little output ripple, low temperature
2, input: voltage AC100V~264V
frequency47-63Hz
startup impact current cold state20A/230V
3, output: voltage DC3V-12V/1A
linearity regulation factor?.5 %max
the output voltage of ripple and noise(mvp-p)<1%
temperature coefficient?.02%/
startup time<1S(AC230V input, Io=100%)
lasting time≥20mS(AC230V input, Io=100%)
4, over-voltage protection 115%-135% voltage nominal value
5, over loading protection 105%-150%rating power off
6, insulation withstanding-voltage: 3000V
7, radiator quomodo: self cooling
8, adapt the authentication of "CCC" "CE"
9, apperance dimension(shell): 70*28*41(mm)
| Place of Origin: | Guangdong Shenzhen in China |
| Model No: | voip power adapter |
| Minimum Order: | 500 |
| Delivery Time: | 5-10 |
