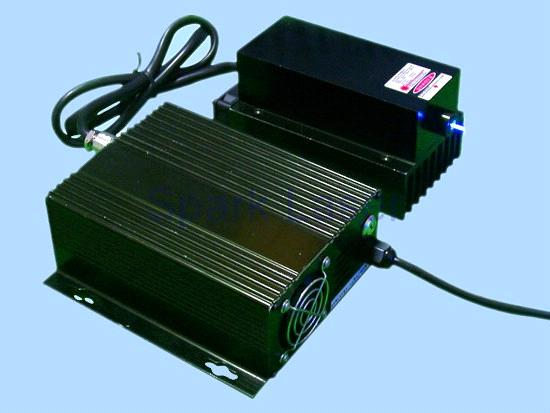

473nm Blue laser

Detailed Product Description

Features

1.Ultra compact

2.Lost cost

3.Long lifetime

4.Easy to operate

5.ESD Protection

6.External modulation available

7.Suitable for Measurement,optical spectrum analysis, laser show applications, etc

Laser power & Model No.

300mW/SPL-473B-300

500mW/SPL-473B-500

Specifications

Model No. SPL-473B-200,300,500

Wavelength(nm) 473

Output Power(mw) >200,300,500

Transverse Mode Near TEM₀₀

Operation Mode CW

Power Stability((rms, over 4 hours) <5%,<10%

Warm-up Time(min) <15

Beam Quality(M²Factor) <2.0

Beam Divergence,Full angle(mrad) <1.5

Beam Diameter At Aperature (1/e² Representative Value) (mm) ～3.0

Beam Height From Base Plate(mm) 55

Spectral Linewidth(nm) <0.1

Polarization Ratio >100:1

Pointing Stability After Warm-up(mrad) <0.05

Operating Temperature(℃) 10～35

Expected Lifetime(hour) 10000

Net Weight of Laser Head(kg) 1.75

Dimension of Laser Head(mm) 164.5*125*78

Integrated Driver Model(85～260VAC) SPL-5A-1

Eternal Modulation TTL/Analogue

TTL Modulation Optional,1-10KHz or higher.If request,Higher rate up to 40KHZ available

Analog Modulation Optional,1-10KHz or higher.0 max when 0-4.5VDC signal input

Warranty Time 1 year

Place of Origin:	Guangdong in China
Model No:	SPL-473B-500
Brand Name:	Spark
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
Minimum Order:	Piece/Pieces 1
Supply Ability:	Piece/Pieces\|3000\|Month
Package:	ESD Shielding Bag
Delivery Time:	5-7 days
