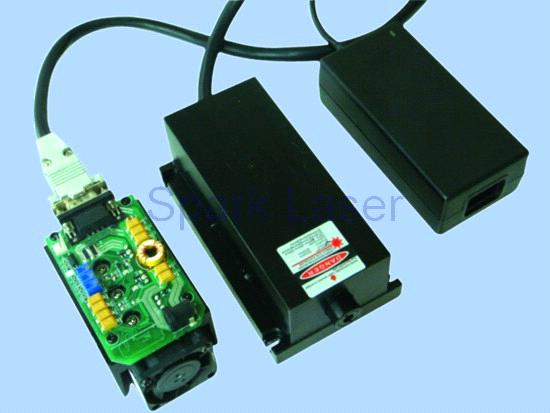

532nm Green laser(350-500mW)

Detailed Product Description

Features

1.Ultra compact

2.Lost cost

3.Long lifetime

4.Easy to operate

5.ESD Protection

6.External modulation available

7.Suitable for Measurement,optical spectrum analysis, laser show applications, etc

Laser Power & Model No.

350mW/SPL-532G-350

400mW/SPL-532G-400

500mW/SPL-532G-500

Specifications

Model No.	SPL-532G-350,400,450,500
Wavelength(nm)	532
Output Power(mw)	>350,400,450,500
Transverse Mode	TEM₀₀
Operation Mode	CW
Power Stability((rms, over 4 hours)	±5％
Warm-up Time(min)	<15
Beam Quality(M2 Factor)	<1.2
Beam Divergence,Full angle(mrad)	<1.5
Beam Diameter At Aperature (1/e2 Representative Value) (mm)	～2.0
Beam Height From Base Plate(mm)	29
Spectral Linewidth(nm)	<0.1
Polarization Ratio	>100:1
Pointing Stability After Warm-up(mrad)	<0.05
Operating Temperature(℃)	10～35
Expected Lifetime(hour)	10000
Net Weight of Laser Head(kg)	1.5
Dimension of Laser Head(mm)	1477953
Integrated Driver Model(85～260VAC)	SPL-0.3A-1
Eternal Modulation	TTL/Analogue
TTL Modulation	Optional,1-10KHz or higher.If request,Higher rate up to 40KHZ available
Analog Modulation	Optional,1-10KHz or higher.0 max when 0-4.5VDC signal input
Warranty Time	1 year

Place of Origin:	Guangdong in China
Model No:	SPL-532G-500
Brand Name:	Spark
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
Minimum Order:	Piece/Pieces 1
Supply Ability:	Piece/Pieces\|5000\|Month
Package:	ESD Shielding Bag
Delivery Time:	3-5 days
