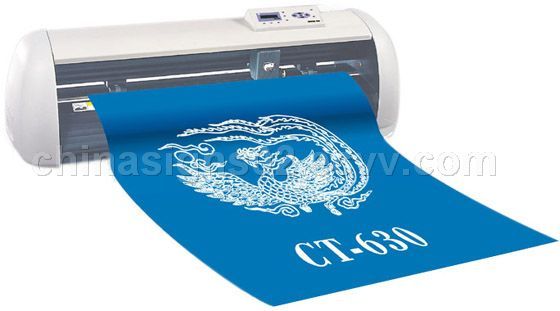

Vinyl Cutter CTN630E

Detailed Product Description

Type
CTN630E
Paper
Feeding mode
M form bracket

Controller
16 bit CPU, 1MB High-speed CACHE memory

Control panel
Over-head, 2x8 L C D, 13-button touch thin-film keyboard

Driver
High stepping motor, micro-step driver

Maximum paper Feed width
730mm

Max cutting width
625mm

Max cutting speed
400mm/s

Max cutting length
20000mm<=20

Max cutting thickness
1mm

Knife press
0-400g(digital adjustment)

Mechanism precision
0.1mm

Repeatable precision
+-0.1mm

type of tool
Carbide blade

Type of plot pen
All types Diameter 11.4mm plotterpen

Protting instruction
DM-PL HP/GL automatic identification

Interface
Standard RS232(seria)/USB1.0

Power supply
AC110/220v?0% 50Hz

Power consumption
100VA

Operating environment
Temperature: +5-+35,relative temperature 30%-70%

Externalsize
1030x275x380mm

Transporting weight
27kg
