Gantry two post lifts

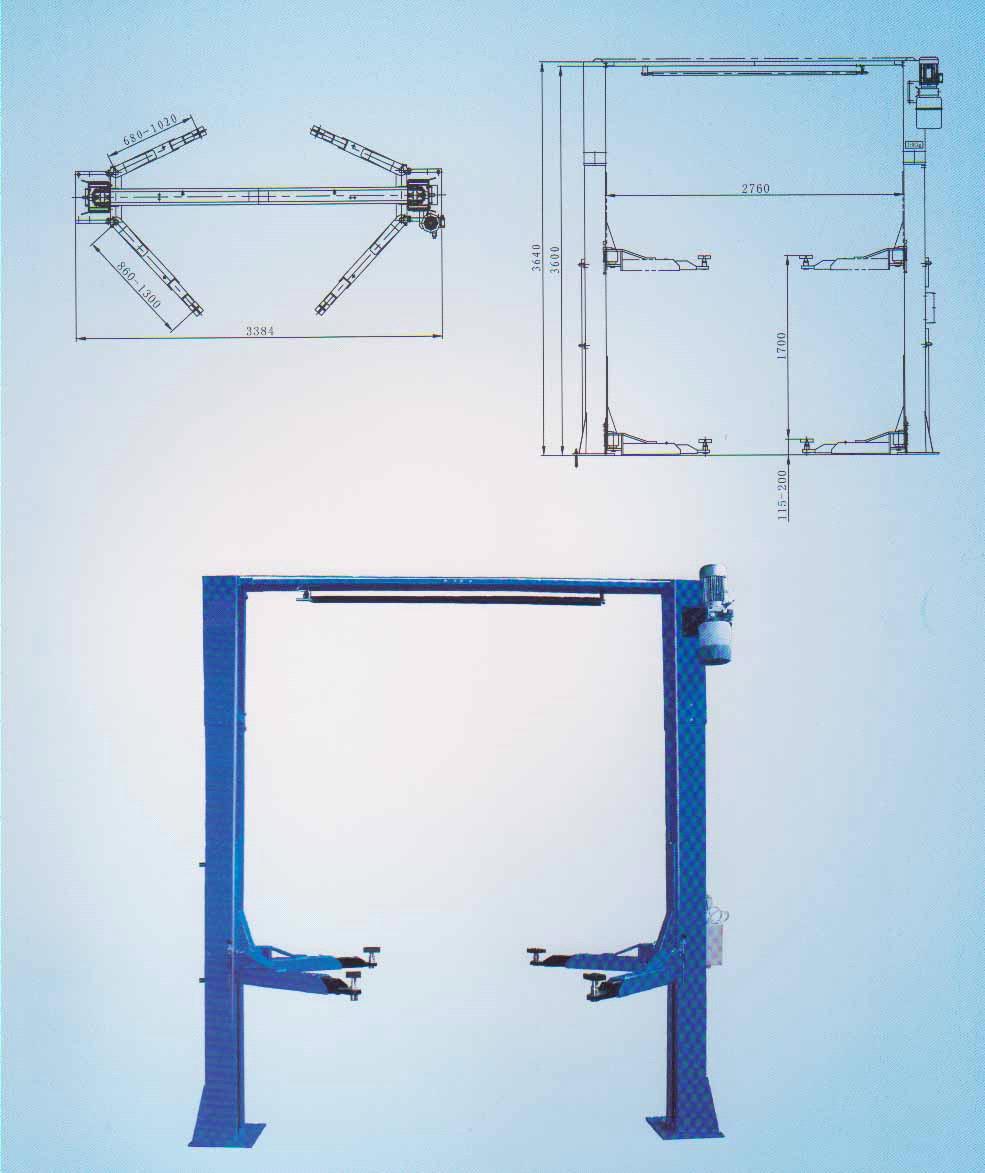

Gantry two post lfits: YSJ3.6/YSJ4.0/YSJ4.4

This is a clearfloor model lift. It features that the operators can work under vehicles without floor obstructions. Once vehicle touch the padded bar which contacts an automatic cut-off switch, the motor will be turned off. It is able to be applied to cars, light trucks and vans with the low-profile lifting pads. Automatic arm restraints keep the pads in position.

Model YSJ3.6
Dual hydraulic cylinders
Electric/hydraulic operation
Automatic arm restraints
12 months warranty
Heavy duty leaf chain
Simple operation and control
Low profile hard rubber lift pads

Lifting Capacity :3600kg
Overall :3370mm
Width between Inside Columns :2756mm
Height: 3912mm
Lifting range :100-1850mm
Length of the long arm :901-1400mm
Length of the short arm :541-1040mm
Motor :380v/50Hz
Power: 1.8kw
Ascending Time <75s
Descending Time: 30-60s
N. W: 760kg
