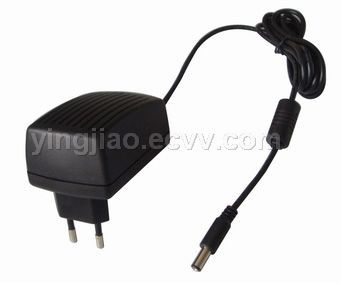

Switching Power Adapter (YS30)

25-35W Switching Power Adapter

Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 ~ +40 degrees centigrade
Storage Temperature: -40 ~+70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 79mm (L)*52mm (W)*37mm (H)
N.W.:145g
AC Input Plug: European 2 round pin, or US 2 flat pin, or UK 3 pin optional
Output plug: optional

Output Specifications:
Model Output Load Voltage (V) Max. Load Current (A)
YS30-XX360 36 0.80
YS30-XX240 24 1.20
YS30-XX190 19 1.50
YS30-XX150 15 2.00
YS30-XX120 12 2.50
YS30-XX090 9 3.00
YS30-XX075 7.5 3.00
XX-represent rated output power
