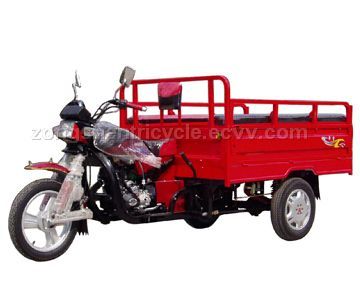

Cargo Tricycle, Pick-up tricycle

Dimension (mm): 3150*1250*1350
Axle Base(mm): 2150
Wheel Base(mm): 1100
Max Speed (km/h): 55. 0
Net Weight(kg): 300
Gross weight (kg): 375
Max load (kg): 650
Driving wheel Standard: 4. 50-12
Driving wheel pressure (kPa): 360
Driving wheel circle (mm): 1630
Engine Specification
Type: 167FML-2
Model: Single cylinder, air cooling, 4-stroke
Displacement (ml): 196. 4
Max power/ speed(kW/r/min): 10. 8/8000
Rotated power/ speed(kW/r/min): 10. 0/7500
Idling speed (r/min): 1500
Lubricate mode Pressure: Splash
Carburetor/Syringe model: PZ30B
Air cleaner model: 200
Spark plug: D8EA
Ignition Coil: MG200
Ignition: MD200
Bore*stroke (mm): 67. 5*55. 7
Compressed Ratio: 9. 2: 1
Max Torque
N*m/r/min: 13. 0/7500
Fuel Type: Petrol
Lubricant type: 15W/40SE

Place of Origin:	Chongqing in China
Model No:	ZS200ZH
Brand Name:	Zongshen
Supply Ability:	30,000/year
Delivery Time:	35
