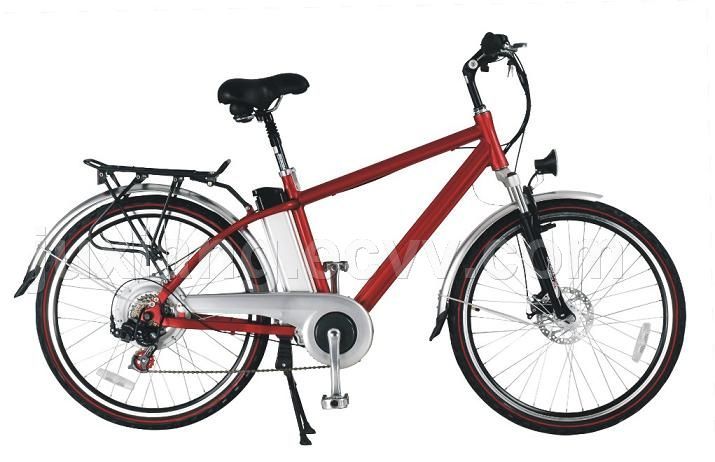

Components
Frame: Al Alloy 6061 T6
Tyres: 26"x1.95", puncture resistant K-shield
Rim: Al Alloy twin wall and CNC side wal
Spokes: 13g steel
Brakes(front): Disc-brakes
Brakes(Rear): Disc-brakes
Gears: 6-class Shimano(TX50)
Front fork: Suspension, Al alloy double crown(ZOOM) Handle bars: Al Alloy (ZOOM)
Head set: Water proof headset
Chainguard: Steel
Mudguard: Al alloy with Al alloy supports
Chainwheel: Steel 44 T, Al alloy crank
Chain: Rust resistant chain
BB: Cartridge type
Stander: Al alloy central stander
Rear carrier: Al alloy
Saddle: GEL Cruiser saddle
Seat Post: Al alloy with suspension(ZOOM)
Motor: 180-250w(EU)/350w(USA)High Speed Brush Gear DC hub motor
Option: High Speed Brushless Gear DC hub motor
PAS Controller: Inner Intelligent Torque Sensor PAS
Overload protection ,Low voltage protection
Battery: Option: 24V 8AH Ni-MH battery / 24V 8Ah or 24V 10Ah Li-ion battery
Charger: 220 / 110V, 50 - 60Hz 2 amps smart charger. Charge time 4-6 hours
Performance
Maximum Speed: ≤25Km/h
Range: 45-55km
Load capacity: 125KG
Weight: Ni-MH battery 3.7 kgs
Li-ion battery 2.8 kgs
N.W./G.W.: 27/31 kgs
Carton Size: 1450x80x70mm
Capability: 96pcs/20' container 208pcs/40' HQ
| Model No: | TDE927Z |
| Delivery Time: | 30 |
