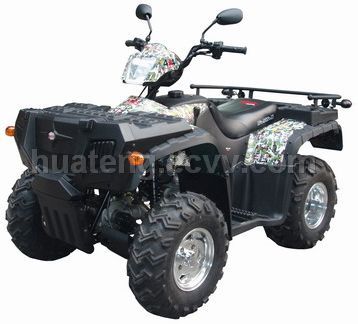

250cc ATV (HA250S-10)

Art. Name: EPA APPROVED 250cc ATV
Art. NO.: HA250S-10
Detail Info:
1) Engine type: 250cc, Single cyclinder, water cooling, four stroke
2) Start mode: electric/manual
3) Ignition mode: C. D. I
4) Length*width*height(mm): 1920*1030*880
5) Wheel base(mm): 1200
6) Power(kW/r/min): 14/ 6500+-500
7) Max torque(N. m/r/min): 15/ 5500+-500
8) Max speed(km/h): > =75
9) Mini ground clearance(mm): 160mm
10) Dry weight(Kg): 270
11) Transmission mode: axle
12) Break type: Disc/. Disc
13) Battery: 12V 14A
14) Climbility: > =20
15) Front shock absorber: single arm-swing
16) Rear hanging: integral
17) Shift mode: 5 gear with one reverse, one
neutral-gear, automatic clutch
18) Front wheel: 22 x 8-10
19) Rear wheel: 22 x 11-10
20) Packing dimension(mm): 1970*1120*880

Conveyance: 20' GP: 10 units 40' GP: 22 units
40' HQ: 33 units

Place of Origin:	China|
Model No:	HA250S-10
Delivery Time:	15
