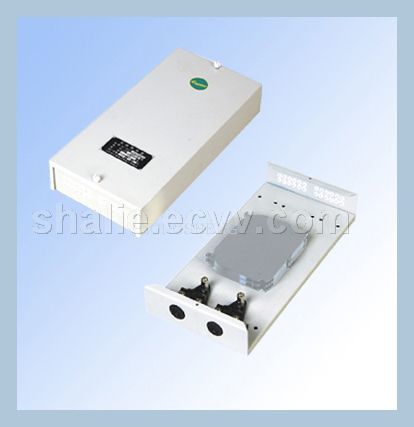

Fiber Optic Termination Box (GP160-B)

The body of GP160-B optical cable terminal box is made of
Quality cold-rolled steel sheet and undergoes static plastic
Spraying treatment to ensure its reliability and stability; The box
Can be installed on the indoor wall and terrace; It is of strong
Mechanical strength, beautiful and elegant exterior; It is capable
Of providing protection for the direct, terminal or branching
Connection of the fiber.
Connection function: Layered turn-cover structure, equipped with special inside device to stop the connection tray from moving forth and back.
Reservation function: Reserve the redundant fiber on the fixed block outside the connection tray, which is bound by bandage to ensure the regularity of the fiber within the connection tray.

Capacity of the connection tray: Single-core bunch 12 cores/tray. Maximum capacity: Can accommodate as much as 6 connection trays. Optical cable inlet-outlet hole: The port can accommodate 2 optical cables with their diameter no more than 20mm.

Place of Origin:	Zhejiang Shaoxing in China
Model No:	GP160-B
Minimum Order:	100 Set/Sets
Supply Ability:	1000 Set/Sets per Month
Package:	Carton with pallet
Delivery Time:	In 60
