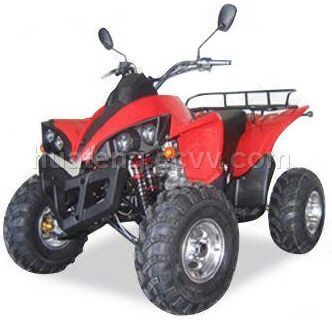

300cc Quad (HA300S-8)

* Art. Name: [EEC/EPA APPROVED] 300cc ATV

* Art. NO. : HA300S-8

* Detail Info. :

1) Engine type: 300cc, single-cylinder, air-cooled and four-stroke

2) Ignition mode: CDI

3) Start mode: electric

4) Transmission mode: chain

5) Break type(F/R): disc/disc

6) Front hanging: double arm-swing

7) Transmission: four forward gears with one reverse gear, manual clutch

8) Parking trig: mechanical lock

9) Rated Power: 12. 5kW/7, 000rpm

10) Maximum torque: 20. 2N. M/6, 000rpm

11) Fuel tank capacity: 10. 8L

12) Maximum speed: 95kph

13) Power source: 12V, 20Ah

14) Climbing degree: 20

15) Cylinder size: 75 x 62mm

16) Displacement: 274mL

17) Minimum turning radius: 1, 750mm

18) Engine oil: 2L

19) Maximum number of riders: 1

20) Lubrication: press splash

21) Compression proportion: 8. 67: 1

22) G. W. /N. W. : 240/205kg

23) Conveyance: 12pcs/20'FCL; 26pcs/40'FCL; 39pcs/40'HP
