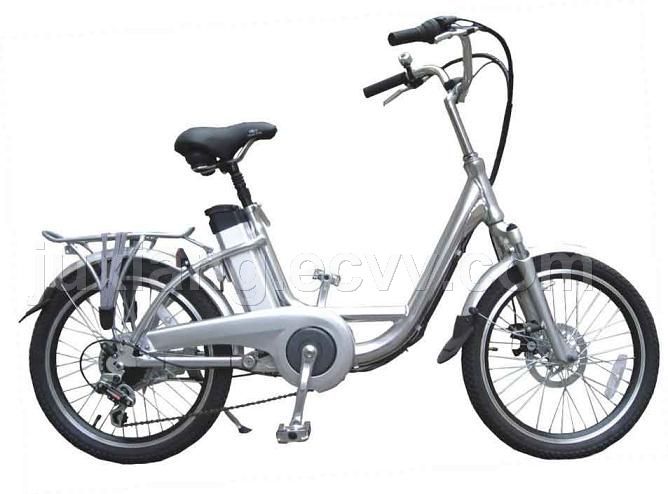

Electric Bicycle (TDN926Z)

1) Components

* Frame: Al Alloy 6061 T6

* Tyres: 20"x1. 95", puncture resistant K-shield

* Rim: Al Alloy twin wall and CNC side wal

* Spokes: 13g steel

* Brakes(front): V-brakes

* Brakes(Rear): V-brakes

* Gears: 6-class Shimano(TX50)

* Front fork: Suspension, alloy ZOOM

* Handle bars: Al Alloy (ZOOM)

* Head set: Water proof headset

* Chainguard: PC

* Mudguard: Al alloy with Al alloy supports

* Chainwheel : Steel 44 T, Al alloy crank

* Chain: Rust resistant chain

* Stander: steel stander

* Rear carrier: alloy

* Saddle : Cruiser saddle

* Seat Post : Al alloy with suspension(ZOOM)

* Motor: 180-250w High Speed Brush Gear DC hub motor

* Overload protection , Low voltage protection

* Battery : Option: 24V 8AH Ni-MH battery / 24V 8Ah or 24V 10Ah Li-ion battery

* Charger : 220 / 110V, 50 - 60Hz 2 amps smart charger. Charge time 4-6 hours

2) Performance

* Maximum Speed : ≤25Km/h

* Range: 35km

* Load capacity: : 115KG

* Weight: : Ni-MH battery 3. 7 kgs

* Li-ion battery 2. 8 kgs

* N. W. /G. W. : 24/28kgs

* Carton Size : 1400x280x640mm

* Capability : 108pcs/20' container 261pcs/40' HQ
