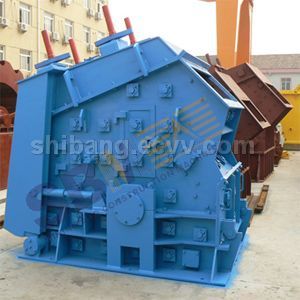

Impact Crushers (PF-1010)

Impact Crusher (impactor)Features and Benefits:
1)  High reduction ratio and crushing efficiency;
2) No-board connection; the blow bar with high chrome (high chromed blow bar).
3) Impact plate with a special shape.
4) Crushed product with cubical shape.
5) Easy maintenance and reliable operation.

Impact Crusher (impactor)Working principle:
This impact crusher machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.



Place of Origin:	Shanghai in China
Model No:	PF-1010
Brand Name:	SBM
Certificate:	ISO9001:2000
Other Price Terms:	CIF, CFR, negotiable
Payment Terms:	L/C,T/T(Bank Transfer),
Others Payment Terms:	negotiable
Minimum Order:	Set/Sets 1
Package:	export standard
Delivery Time:	30 days
