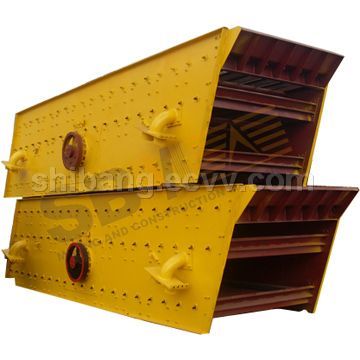

Vibrating Screen (Mining Screen)

Vibrating Screen (Mining Screen)Application

Shibang vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad. Vibrating screen is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.

Vibrating Screen (Mining Screen)Features and Benefits:

Vibrating screen features long flowing line, many screening specifications, strong violent vibration force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.

Vibrating Screen (Mining Screen)Operating Principle

Vibrating screen adjusts the amplitude by tube-shaped violent vibration screen of eccentric shaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.



Vibrating Screen Specification

Type	Screen Spec .mm	Layers	Sieve Pore mm	Max. Feed Size mm	Capacity t/h	Power KW	Screen area m2	Weight Excluding Motor t
2YA1237	1200×3700	2	3-50	200	7.5-80	5.5	3.6	2.34
3YA1237	1200×3700	3	3-50	200	7.5-80	7.5	3.6	3.05
2YA1548	1500×4200	2	5-50	400	50-208	15	6.3	5.33
3YA1548	1500×4800	3	5-50	400	50-250	15	7.2	6.07
3YA1848	1800×4800	3	5-80	400	50-300	18.5	8.64	6.93
3YA1860	1800×6000	3	5-80	400	50-350	22	10.8	7.70
3YA2160	2100×6000	3	5-100	400	100-500	30	12.6	9.24
2YA2460	2400×6000	2	5-150	400	150-700	30	14.4	12.35

Note: This specification is just reference, any changes are subject to the Vibrating Screen products.

Place of Origin:	Shanghai in China
Model No:	YA series
Brand Name:	SBM
Cerificate:	ISO9001:2000
Other Price Terms:	CIF, CFR, negotiable
Payment Terms:	L/C,T/T(Bank Transfer),
Others Payment Terms:	negotiable
Minimum Order:	Set/Sets 1
Package:	export standard
Delivery Time:	30 days
