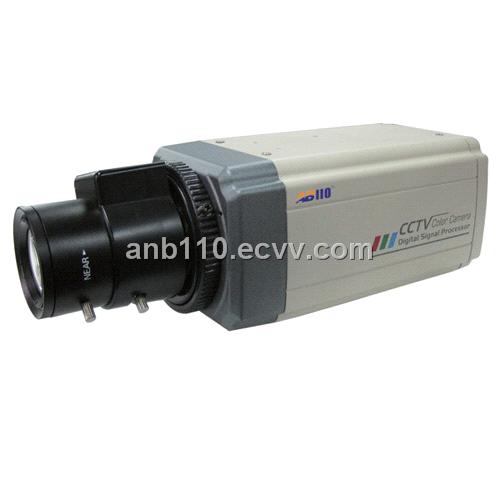

AB800-B3502 SUPER INHIBITION D&N CAMERA

Detailed Product Description

FEATURE

> using 1 / 2 "or 1 / 3" SONY Exview HAD high-sensitivity CCD, image is more clear;
> OSD menu, support Chinese / English, easy to operate;
> Multi-level adjustable electronic shutter ;
> C/B Mode: Manual / Auto selectable / External trigger ;
> 3D-DNR - digital noise reduction ;
> 4 privacy area blocking ;
> Sync mode: Internal Sync./ External Sync. / Automatic, optional .

SPECIFICATION

Model	AB800-B3502	AB800-B2502
Image Sensor	1/3" SONY Exview HAD	1/2" SONY Exview HAD
Min. Illumination	Color: 0.06LUX (F1.2) B & W: 0.002LUX (F1.2)	Color: 0.0006LUX(F1.2) B & W: 0.00002LUX(F1.2)
Signal format	PAL/NTSC
Effective Pixels	PAL: 752(H)×582(V), NTSC: 768(H)×494(V)
Horizontal Resolution	Color 540TVL, B & W 570TVL
Sync. System	INT/ LL
S/N Rate	>50dB (AGC OFF)
Lens	C/CS
Aperture Control	DC / ELC / VIDEO, lens drive mode optional
Privacy regional	4 Interval Optional
3D-DNR	3D-DNR
White Balance Control	ATW / AWB / PUSH / MWB optional
Electronic Shutter	Automatic electronic shutter and manual electronic shutter optional Manual Electronic Shutter: 1 / 50 ~ 1 / 100,000
Gain Control	256 adjustable
Mirroring function	Optional Switches
RS485	Support
BLC	Optional Switches
Screen Menu	Chinese / English menu
Light Inhibition	HSBLC Super inhibition, 256 adjustable
Detector input	2-way, electronic shutter and alarm trigger snap
Light shelter	High / Medium / Low
Video Output	1Vp-p ,75(Ohm), BNC
Work environment	Ambient temperature: -10 DEGREE ~ +50 DEGREE; relative humidity
Storage environment	Ambient temperature:-20 DEGREE ~ +60 DEGREE; relative humidity
Weight	0.4Kg
Power Supply	DC12V/AC24V
Power	4W
