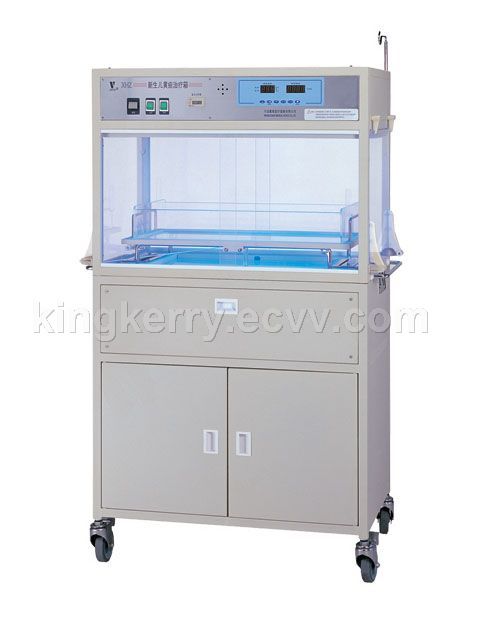

Neonatal Bilirubin Phototherapy Equipment

* Brief introduction:

Temperature servo-controlled by micro-computer, and this unit Adopts the far-infrared ceramic heating plate as heating resource, has the function of over-temp alarm and sensor alarm; blue light in double way, there are total 11 pieces of blue lamp with 20W for each; touched operation panel, LCD can display clock and temperature with blue light timer; and inside of box, there is heat-dissipating fan; the infant bed is made of whole transparent acryl plastic, and the panels around the bed can be opened, and the infant bed can be pulled out from the side door.

* Standard configure:

Temperature controller, Up Cabinet, Cabinet, infant bed, I.V.Pole.

* Technical specification:

Power supply : AC220V 50HZ
Power input: 800VA
Temperature control range: 25~37
The margin between the indication temperature and the control temperature: ≤0.7℃
Uniformity of the surface temperature on bed: ≤3.5℃
Radiation of Blue light for upper radiant box:≥850μW/cm2
Radiation of Blue light for lower radiant box:≥700μW/cm2
Timer range of blue light:0~9999 hours ( Reset )
Over temperature alarm: ≤39.5℃, give the visible and audible alarm
Sensor Alarm: The leads of sensor plug is open circuit or close circuit.

* Package:

Gross Weight:Main body 70Kg / Cabinet 50Kg
Measurement:Main body 1000mm?00mm?90mm
Cabinet 910mm?00mm?90mm
