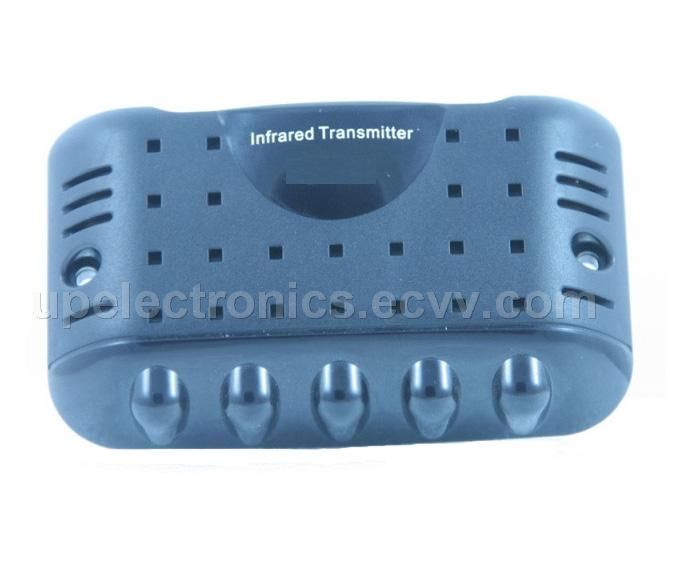

IR Transmitter (IRTX01)

Specifications:

1) Infrared light wavelength: 850 nm

2) Carrier frequency:

Right: 2.8 MHz, Left: 2.3 MHz

3) Effective range: over 10 meters (straight)

4) Distortion: <1% frequency

5) Response: 20 Hz to 20 kHz

6) S / N ratio: ≥60 dB

7) Power input tolerance: 11V to 14V

8) Power requirement: 12 V DC / 120 mA

9) Power consumption: 1.0 w

10) Audio input range: 0.2 V to 2V (RMS)

11) Dimensions: approx. 100 x 60 x 22 mm
