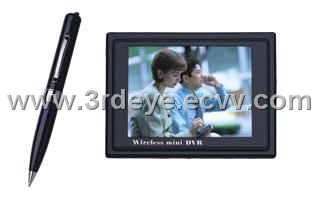

2.4GHz wireless spy camera pen with DVR(TE-826)

*Wireless transmission provides real time video on DVR to view effect as you record;
*Near and far focus available for choice (near focus for small text record);
*3.5"TFT LCD screen with up to 800X600 resolution
*Video Format: Mpeg-4,AVI (800 or 320 @ 30fps) MP4,3GP
*Memory: built-in flash :2GB~8GB; support SD card 1GB to 16GB
*420TV line for clear image;

*Night vision available
*4 channels available to avoid possible interference;
*Built-in antenna and rechargeable Li-battery;
*Min. 100m transmission distance without blocks



Transmission Frequency		ISM 2,400MHz~ 2,483MHz    4CH*
Modulation Mode		FM
Antenna Type		Hidden
Unobstructed Effective Range		100m(Without Block)
Operating Temperature		0℃~ +50℃ / +14℉~ +122℉
Storage Temperature		-20℃ ~ +60℃ / -4℉ ~ +140℉
Operating Humidity		85%RH
CAMERA	Transmission Frequency	ISM 2,400MHz~ 2,483MHz CH1 CH3
	Audio subcarrier frequency	6.0Mhz
	Antenna	Built-in 2.4G antenna
	Transmitting Range	300 feet in line of sight
	CMOS Total Pixels	656×492(NTSC)
	Horizontal resolution	420TV line
	Frame rate	30FPS
	Built-in mic.	55dB high sensitivity
	View Angle	62°
	Camera lens focus	Beyond：3m  vicinity:10cm
	Minimum Illumination	0.1 Lux / F1.5
	Transmission Power	10mW
	Battery Performance	Li-ion Battery  280 MAH
	Working Time	2.5 hours
	Charge time	1 hour
	Operating voltage	DC 5V
	Operating current	105MA
	Color	Golden/Silver
	Dimensions( LX D)	160X15mm
	Weight	40g
RECEIVER	Receiving CH	CH1~CH4
	Sensitivity	-92dB
	LCD	3.5 inches TFT
	AV out	NTSC / PAL
	Resolution	640*480 / 320*240
	Video compress	MPEG-AVI    30fps
	Play format	RM / RMVB / 3GP / MP4 / FLV / AVI / ASF / WMV / DAT / VOB / MPG
	Frequency	20HZ-20KHz  stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Play format	MP3 / WMA / AMR / AAC / FLAC / APE
	Speaker	0.6W
	File format	JPG/JPEG
	FLASH	2GB-8GB （default 2GB）
	Outer SD card	TF card 1GB-16GB( optional purchase)
	IBM-PC	Windows 2000、XP & VISTA
	Port	HI-USB 2.0
	Language	Multiple languages
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 1200Mah
	Wireless record	≥2.5 hours
	Video record	≥5 hours
