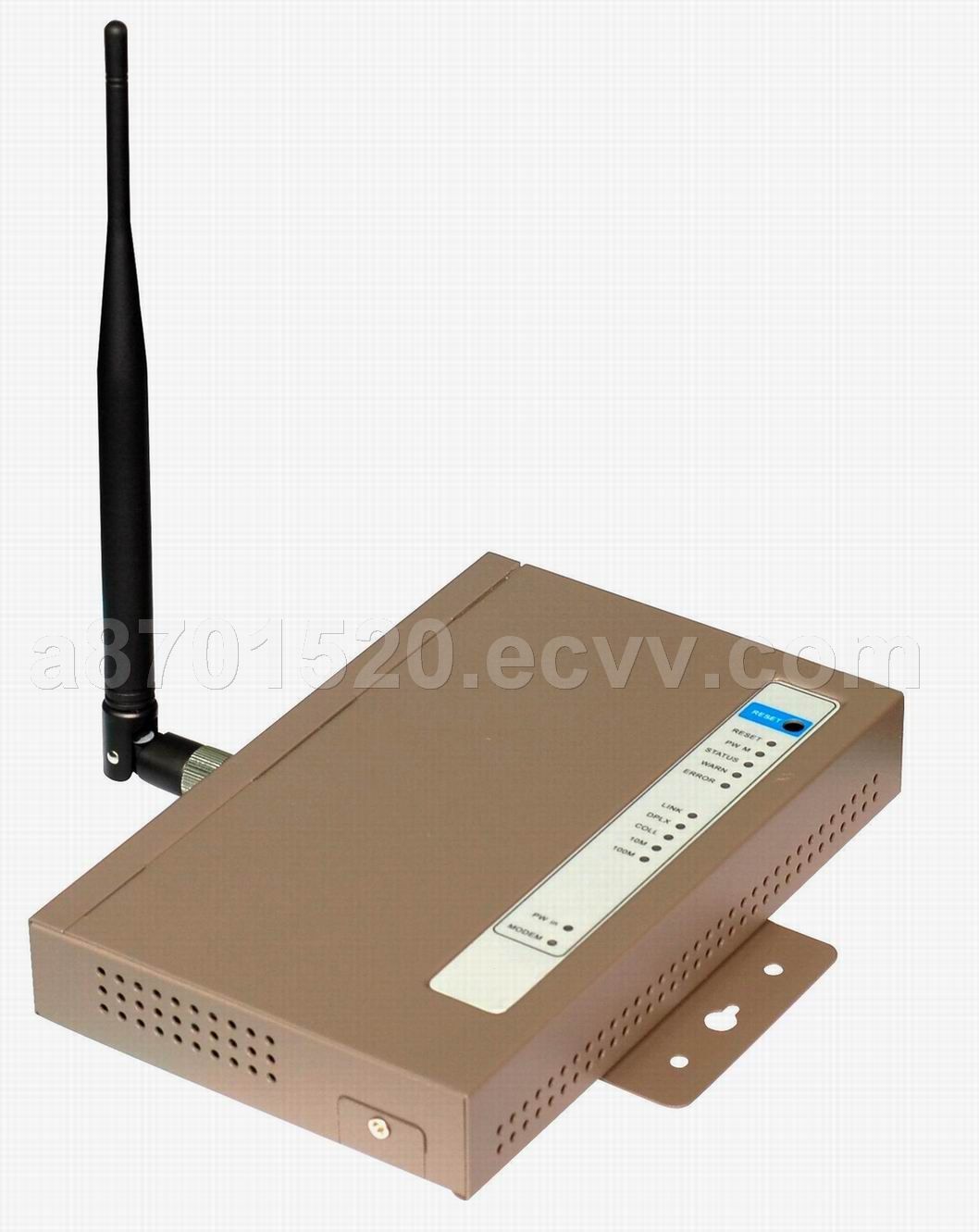

EDGE/GPRS ROUTER

Detailed Product Description

Features:
Support EDGE/GPRS networks
Quad-band 850/900/1800/1900MHz
EDGE MS Class 8/10/12
TCP/IP protocol inside
Dynamic DNS addressing
DDN
PPP/CHAP/PAP/MS-CHAP protocol support
Support DHCP Protocol
NAT mapping
Firewall
VPN(IPSec) IP security tunnel
Hardware watchdog
Connect to the network automatically
Data Pulse Function / Network Monitor
Self diagnosis/work mode display
Addressable the IP of the net interface
Can setup the dial parameters
WEB and Telnet management
Interface:
UIM/SIM card: 3V
Antenna: 50Ω/SMA
Serial:
Interface type: RS232
Data bit: 6/7/8
Stop bit:1/2
Parity bit: N/O/D
Baud rate: 9600/ 19200/ 38400/ 57600/ 115200/ 230400 bps
Ethernet Interface:
Interface type: RJ45
Communication rate: 10/100M auto adaptive
Working mode: half/full duplex
Power Supply:
Voltage: 9~26V DC
Operating Current: (Standby) 100mA@+12VDC
(Communicating)350mA@+12VDC
Exterior Feature:
Dimensions: Dimensions: 180(L)*114(W)*28(H)mm
Weight: 510g
Operating temperature: (Commercial level: 0~55; Industrial level:-20~55)
Storage temperature: (Commercial level: -15~75; Industrial level:-40~85)
