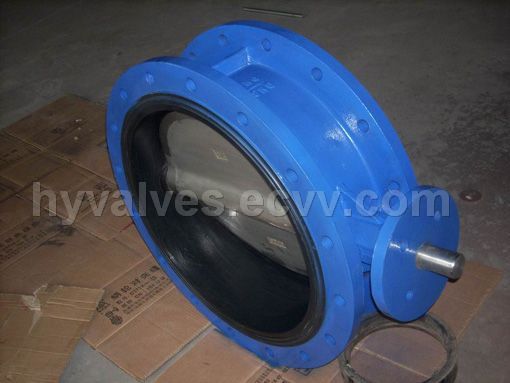

Flange Butterfly Valve (BV2F)

Detailed Product Description

* Double Flange Butterfly Valve (Center Line)

* Model: BV2F

* Size: DN50 to DN1200

* Body: CI DI

* Disc: CI DI WCB SS Aluminum bronze

* Stem: SS (One Piece with Pin)

* Seat: NBR EPDM VITON PTFE

* Working Pressure: PN10

* Surface: Electric Fussion Epoxy Powder Coated

* Actuator: Hand Lever

* Worm Gear

* Penumatic

* Electric

* Flange drilling standard: BS4504

* BS10 TABLE D/E

* ANSI B16. 5

* JIS 5K 10K 20K

* DIN2501

* AS2129 TABEL C/D/E

* ETC...

* Long service life, free passage, low resistance coefficient.

* Suitable for control of water, seawater, sewage, oil, air, vapor, food , medicine, acids, alkalis, salts, paper making etc.
