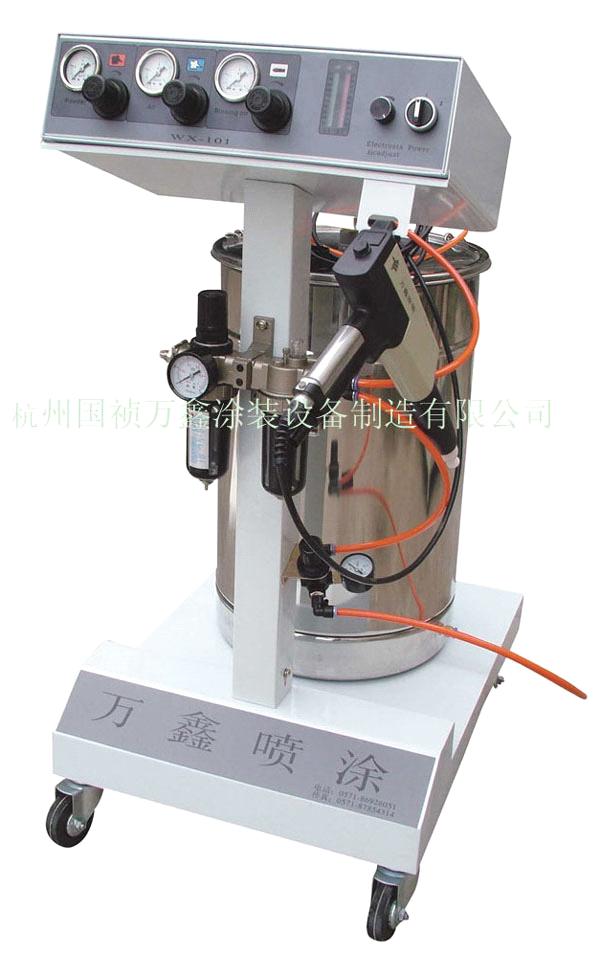

Electrostatic powder coating machine

Detailed Product Description

Electrostatic powder coating unit

WX-101A Electrostatic powder coating machine:

Popularly used in the metal workpieces with the metallic or plastic processing step, welcomed by OEM in the coating service market.

Built-in high voltage electrostatic generator
1. Powder applicable: All kinds of powder without the metals
2. Configuration:
Powder gun *1 + host*1 + powder pump*1 + powder container*1+trolley*1 +oil-water separator*1 + air pressure regulating valve*1
3. Technical parameter
A). Host:
Input power voltage: 90-260v 50-60Hz-(swtich mode power)
Input power: 40w
Different countries, different standard
B). Powder supply &air soure
Electromagnetic valve control power voltage: 24v DC
Input air pressure: 0-0.6Mpa
Output air pressure: 0-0.5Mpa
Max. Air consumption: 13.2m/h(0.4Mpa)
Powder container volume: 45L
C). Powder gun
Wx-101A grey electrostatic powder gun
Input air pressure: <=0.3Mpa
Output powder volume: Max. 550g/min
Output power voltage: 0- -100kv
Output current: 0-150uA
Gun weight: 480g

Place of Origin:	Zhejiang in China
Model No:	WX-101
Brand Name:	wx
coating machine:	coating equipment
coating system:	powder coating machine
powder coater:	electrostatic powder coating machine
Other Price Terms:	see the order qty
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	WOODEN CARTON
Delivery Time:	in one week
