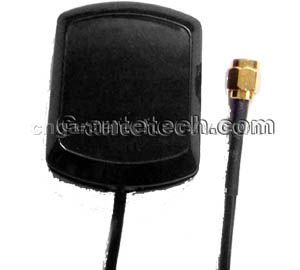

GPS Active Antenna (GA-GPS-02)

* Dieletric Antenna
- Center Frequency: 1575.42MHz
- V.S.W.R 1.5:1
- Impendence 50 ohm
- Peak Gain: >3dBic Based on 7*7cm ground plane
- Gain Coverage >-4dBic at -90 0<+90 over 75% Volume)
- Polarization RHCP

* LNA/Filter
- LNA Gain(Without cable) 28dB Typical
- Noise Figure: 1.5dB
- Filter Out Band Attenuation (f0=1575.42 MHZ)
- 7dB Min f0±20MHZ ;
- 20dB Min f0±50MHZ;
- 30dB Min f0±100MHZ
- V.S.W.R <2.0
- DC Voltage 3V, 5V, 3V to 5V or other
- DC current 5mA,10mA Max

* Mechanical
- Weight: <110 gram
- Size: 43*35*13mm
- Cable RG174 5 meters or 3 meters
- Connector SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX
- Mounting Magnetic base
- Housing Black

* Environmental
- Working Temp.: -40℃~ +85℃
- Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
- Humidity Humidity: 95%~100%RH
- Weatherproof: 100%Waterproof
