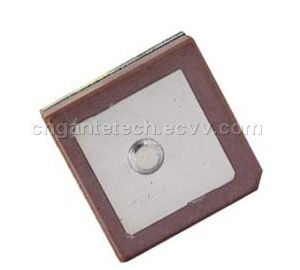

Active Antenna-GPS (GA-GPS-25)

Center Frequency: 1575. 42MHz

V. S. W. R 1. 5: 1
Band Width ? MHz
Impendence 50 ohm
Polarization RHCP

LNA Gain(Without cable) 25-28dB Typical
Noise Figure 1. 5dB
DC Voltage 3V , 5V, 3V to 5V or others
DC current 5mA , 10mA Max
Cable: Rg174 or others
Connector: MMCX/OR Others
Size:25x25x4

Working Temp -40℃ ~+85℃
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
