VG-980 Model is a high speed fancy yarn crochet machine. The machine first knits cloth with warp and weft yarn, then cuts the warp yarn to form the final yarn. Otherwise it knits warp and weft yarn straightly kit belt yarn. VG-980 machine is suitable to knit various kind of yarns, both natural fibers (wool, silk, cotton, linen, etc.) and synthetic fibers (polyester, acrylic etc). These entire materials can be dyed before or after knitting, in accordance with the requirements. The characteristic of the patter yarn is the core yarn knitted into rings and the weft one used as its mattress. The finished yarn is flat shape.
VG-980 high speed fancy yarn crochet machine controls the devices by changing inlay methods to produce all kind of various pattern yarns. The machine speed is controlled by a frequency converter, starting at slow speed with stepless speed regulating, fast breaking to low speed according to meet the test production demand.

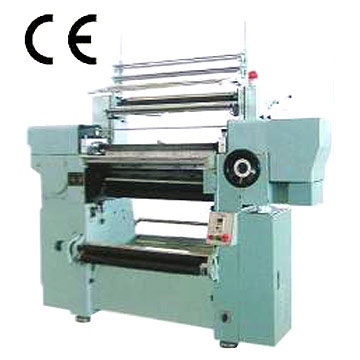

VG-980 FANCY YARN COMPUTERIZED CROCHET KNITTING MACHINE
MAIN TECHNICAL PARAMETERS:
1 Operational width: 762MM (30 inch)
2 Gauge needles per inch 10,15,18,20
3 Weft needle plates 4 sets (Max 8 sets)
4 Maxima movement of weft bar 2 inches
5 Whole machine power 4.5kw
6 Main shaft speed max 1500r/min
7 Main machine (L*W*H) 2020*1950*1750mm
8 Winding section (L*W*H) 3000*2800*2400mm
9 The girth of rack frame 1700mm
10 Creel (L*W*H) 4200*1800*2750mm
11 No. of yarn bobbin 520 pieces
12 Gauge of yarn spindle 200 mm
| Place of Origin: | Jiangsu Suzhou in China |
| Model No: | VG-980 |
| Brand Name: | VICTOR |
