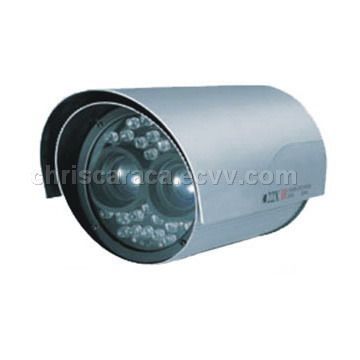

IR Camera

Detailed Product Description

1/3" SONY CCD Color ;1/3" SONY CCD (B / W)
16mm lens
Exquisite design,precise circuit & structure ,incorporated the
highest technology
Aluminum structure ,All_sealed water-proof body Sunshield used
for outdoor supplied
Longer working distance in night ,best choice for
large zone surveillance system such as borders & warehouse etc
Specification
Model CW-D30
Signal System PAL/NTSC
Image Sensor 1/3" SONY CCD Color ;1/3" SONY CCD (B / W)
Horizontal Resolution 420 TVL(IR OFF); 600 TVL(IR ON)
NO. of Effective Pixels PAL:500(H)X582(V);NTSC:510(H)X492(V)
Minimum Illumination 0.5Lux/F1.2(LED OFF) ; 0Lux ( LED ON)
Day/Night Automatically Switch Illumination<3~5 Lux/F1.2
White Balance Automatic
S/N Ratio More than 52dB
Electronic Shutter 1/50~1/100,000sec(PAL),1/60~1/100,000sec(NTSC)
AGC/BLC Automatic
Lens 16mm lens
IR-LED 850nm
IR Series distance 60Meter
IR LED life 100000hrs
Gamma 0.45
Sync mode INT
Video Output Composite Video Output(1.0Vp-p 75 Terminated)
Power Supply DC 12V +/-10%
Operation Temperature -10癈 to +50癈 RH95%MAX
Body Aluminum
Weight 780g
