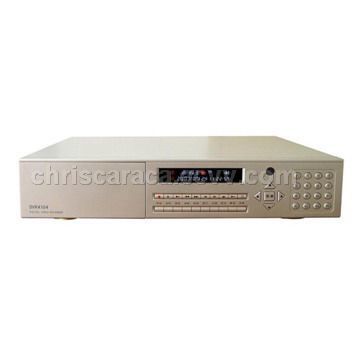

Stand alone DVR

Detailed Product Description

OS
PSOS real time operation system

Video Input/Output
8 In / 2 Composite Out / 1 VGA Out

Video Signal
NTSC/PAL Selectable

Display Speed (NTSC/PAL)
240/200fps(Real-time Display)

Recording Speed
(NTSC/PAL)
360x240
240/200fps (complete pictures)

720x240
120/100fps (complete pictures)

720x480
60/50fps (complete pictures)

Monitor Output
Main Monitor Output (Composite, VGA)

Recording Resolution
NTSC : 360x240, 720x240, 720x480, PAL : 352x288, 704x288, 704x576

Compression Algorithm
H.264

Recording Modes
Manual/Alerm/Timing/Motion

Motion Detection
Supports the Setting of Motion Sensitivity & Area per Camera

Audio Input / Output
8ch Input or 8ch loop selectable/ 1ch Output

Alarm Input / Output
8ch Input / 4ch Output

PTZ Control & Port
Pan/Tilt/Zoom/Focus/Iris, RS-485 Port

LAN
10/100BASE-TX Ethernet

Event Log Search
Max.500 logs for event records

R Remote Management
Remote Configuration and management by Remote S/W

Remote Function
Live, Playback, backup, Configuration

Internal CD(DVD) -RW
Supported (Option)

External Backup Device
USB 2.0 (USB Thumb drive);Lan;HDD

System Operation
Button on Front Panel, or Remote Controller

HDD
Max8HDDs (8HDDs OR 4HDDs + 1 CD(DVD)-RW)

Operating Temperature
and Humidity
-10~60℃ / 20~80%RH

Power
100VAC-240VAC, 3A, 60/50Hz, App.50W

Dimension and Weight
432 (W) x 96 (H) x 420 (D) mm, 7Kg

Remote Software
CMS software or IE
