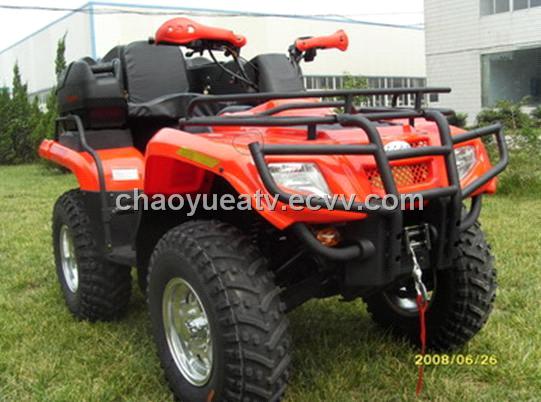

New 400cc with eec /epa

Detailed Product Description

Dimension(L×W×H): 2100×1210×1200mm
Wheelbase: 1320mm
Distance between front wheels: 920mm
Distance between rear wheels: 935mm
Ground clearance: 280mm
Seat height: 920mm
Dry weight: 312kgs
Gross weight: 368kgs
Fuel tank: 13L
Max speed: 85km/h
Brake system (front/rear): Disk/Disk
Gearshift mode: Automatic clutch,five speeds,one neutral with inside reverse gear
Transmission mode: Shaft
Drive system: 4WD/2WD
Steering angle: 36°
Tire front: 25×8-12&24×8-12
Tire rear: 25×10-12&24×9-11
Cargo front: 331bs(15kg)
Cargo rear: 881bs(40kg)
Suspension: F/R Double suspension
Tow weight limit: 3376N(385kgf/8501bs)
Tongue weight: 137N(14kgf/30bs)
Engine
Engine model: 179F
Efficient Capacity: 359.1ml
Engine type: 4-stroke,Single-Cylinder
Cooling system: Air-cooled + Oil-cooled
Rated power and rotate speed: 13.5kw(5500r/min)
Max torque and rotate speed: 24N.m(4000r/min)
Compression ration: 8.8:1
Bore×stroke: 78.5*74.2mm
Carburetion
Oil Capacity: 2L
Economical oil consumption(L/100km): ≤7
Electrical
Battery: 12V-14Ah
Starting system: Electric/Hand-pull
Ignition:  DCDI
Quantity: 8 units/20″; 18 units/40″; 27 units/40HQ
PACKING SIZE 2320*1270*850

Place of Origin:Chongqing in China
Model No:400
Delivery Time:12
