Detailed Product Description

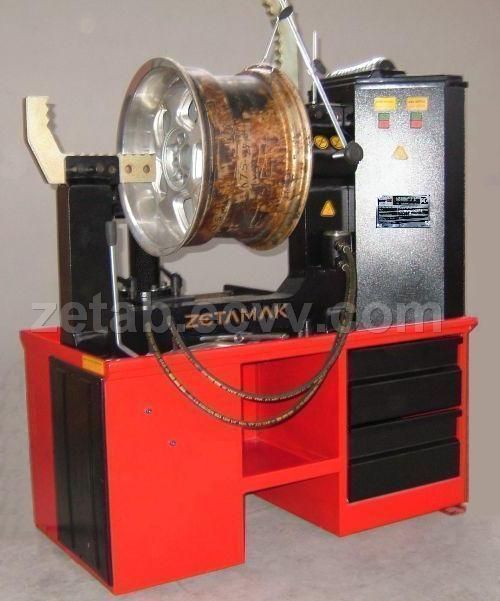

This unique machine is used to correct / straighten defected steel and alloy wheels from 10" to 24".
DIMENSIONS
Height...............1320 mm
Length...............1550 mm
Width................ 640 mm
Net ................. 480 Kg
MOTOR SPECIFICATIONS
Mechanic Motor..........0,75 kw , 1400 rpm ,380 V - 220 V
Hydraulic Motor....................0,75 kw , 1400 rpm ,380 V - 220V
Sound Level ............45 db
HYDRAULIC PISTON POWER
Total pressure = pr2 x 160 (Working pressure bar) Total pressure = 3,14* (3,15 x 3,15) = 31,156kg Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm. As you have seen above formula you can have 5 tons of total pressure while working on our Rim Straightening and Shining Machines.
STANDARD ACCESSORIES
1. 18 pcs rim attaching center
2. 1 pc (mihengir) metal pointer
3. 1 pc angular press tip 1 pc flat press tip 1 pc gradated press tip 1 pc fork press tip 1 pc cutting type press tip
4. 3 pcs support axis for press tips
5. 1 pc lever
6. 1 pc lathe pen
7. 1 pc supper support
8. 1 pc lower support
9. 4 pcs Support pins
10. Flange nuts and bolts
| Place of Origin: | izmir in Turkey |
| Model No: | RSM2400 |
| Brand Name: | ZETAMAK |
| FOB Price: | 3500-3750 USD izmir / TURKEY |
| Other Price Terms: | 10% discount will be applied for the orders 5 pcs minimum. |
| Payment Terms: | L/C,T/T(Bank Transfer),Western Union, |
| Minimum Order: | Piece/Pieces 2 |
| Supply Ability: | Piece/Pieces|30|Month |
| Package: | On standard export pallets |
| Delivery Time: | 7 |
