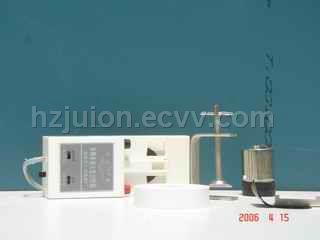

Electric spark timer of multiple frequencyElectric spark timer

Detailed Product Description

Specifications
Cycle of paint dot             T0=10ms, 20ms, 50ms
Strength of the high pressure pulse      breakdown 8mm gap of air
Thickness of the paint dot          thin, middle and thick
Average current of the high pressure pulse   150~450礎
Quality of the paint dots          continuous 50 dots no leaks, the dots are
clearly discernible, diameter 0.8mm
  Weight of the gravitational hammer      300g
Effect of the experiment          measuring acceleration of gravity is required to 9.9m/s2≥g≥9.5m/s2
Power supply               AC 220V?2V 50Hz?.5Hz
Operating conditions
Ambient temperature        0to 40
Relative humidity         20% to 90% (at 40)
Weight of the electric spark timer       approx 230g
Dimension of complete set          152mm?2mm?65mm
Weight of complete set           approx 680g

Place of Origin:	Zhejiang Hangzhou in China
Model No:	J0207-1
Brand Name:	Julion
