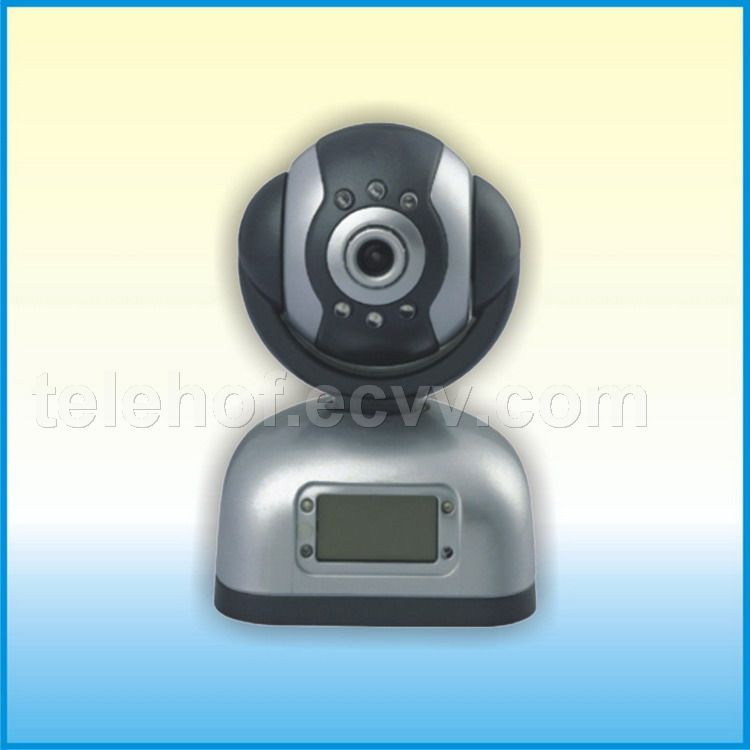

CCTV PT IP Camera

Detailed Product Description

Main Features: * Able to be accessed by any PC on the network running web browser; * With MJPEG hardware compression, bringing live viewing to you. * The built-in pan and tilt, live streaming audio, and snapshot/video capture functions can all be controlled directly from the camera's on-board homepage. * Advanced 128-bit AES encryption to the images transmission ensures your information security. * Able to store images to CF Card, or send images to your mailbox when the motion detection triggered. * The internal relay can be used to control external devices according to your setting. Specifications: System Video Image sensor Built-in high-quality CMOS Sensor (30,0000 pixels) Compression Motion-JPEG FPS 30 frames per second (640x480) maximum Resolution VGA (640x480), QVGA (320x240), QQVGA (160x120) Optional Typical bandwidth 160x120@10fps: 300 kilobits ~ 480 kilobits 320x240@10fps: 640 kilobits ~ 960 kilobits 640x480@10fps: 3.2 Megabits ~ 4.8 Megabits 160x120@30fps: 900 kilobits ~ 1.44 Megabits 320x240@30fps: 1.92 Megabits ~ 2.88 Megabits 640x480@30fps: 9.6 Megabits ~ 14.4 Megabits Input Alarm input 2 pairs of Open / Close ports Alarm output 1 pair of relay ports ( 36V AC/DC, 2A Maximum) Connection 5 Pins Network Interface Ethernet 10/100Base-T RJ-45 connector Protocol Transmission: UDP/IP, TCP/IP,SMTP/HTTP/FTP; Others: DNS and DHCP client, DDNS System Setup Through the web browser Upgrade Firmware upgrade CPU 32-bit ARM @ frequency 66MHz SDRAM 16MByte FLASH 4MByte Model IPC 500 Image pick-up device Color CMOS TV system NTSC/PAL Number of pixels NTSC: 510(H) x 492(V); PAL: 628(H) x 582(V) Horizontal resolution 380 TV lines Min. illumination 0V7910: < 3 Lux / F 1.2 Electric shutter time NTSC/PAL: 1/60 ~ 1/15,000 Sec S/N ration > 48dB Sync system Internal synchronization Video output 1Vp-p, 75 ohm Power supply DC 5V/1A, 5W Working temperature 0℃ ~ 45℃/RH 95% max Net weight 225g Dimension 240mm x 140mm x 244mm
