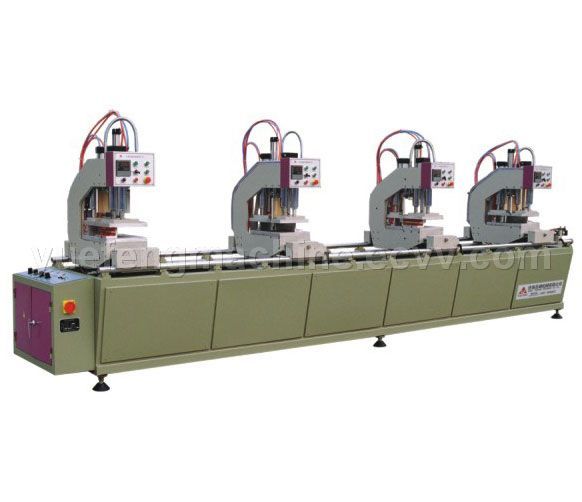

PVC Four/Three/Two-head welding machine

The machine applies to welding for PVC window and door, it can process shapes of ┏┓ ┏┳┓┳┳┳┳ ╋╋╋╋ ┏┓┏┓and their inter-combinations. It is controlled by PLC and pneumatic drive. It has the characteristics of high automation, reliability, wide processing range etc. The four machine heads can work together, independently or do combinational work, it also can divided into 2 two-head welding machines. It adopts round guideway which results high accuracy, reliability and long-life durability.
Model SHZ4-100?500
Input Voltage   380/220V 50Hz
Input Power   4.5 Kw
Air Pressure   0.4~0.6 MPa
Air consumption   200 L/min
Welding Height   20~110 mm
Welding Length   400~4500 mm
Overall Dimension  5300?50?650 mm

Place of Origin:	Shandong JINAN in China
Model No:	SHZ4-100?500, SHZ3-100?500
Brand Name:	YUEFENG
