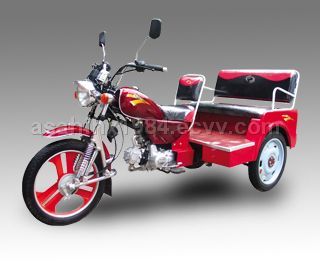

Rickshaw(cargo Style)

Engine       150CC water cooling    (1 cylinder,4 strokes)
Displacement      150cc/175cc/200cc/250cc
Standard Output Power 9.5KW/8500r/min(150cc)
Maximum Net Torque 10N.m/7500r/min(150cc)
Idle Speed(RPM):   1500RPM
Fuel Capacity     Petrol tank 12 L&CNG Tank 22 L
Clutch Method   Foot Operation/ Hand Operation
Transmission     5 Forward+1 Reverse
Brake(Front/Rear)   Mechanical/Mechanical
Starting System   Electric/Kick
Front Suspension   Hydraulic Spring
Rear Suspension   Complete/Hydraulic Spring
Design Max Speed   60km/h(150cc)
Ground Clearance   170mm
Wheel base(mm)   1800
Wheel Track(Rear)  1130
Emission Standard  Euro II
Doors       with 4 doors(Lock B)
Tyre F&R:      4.00-12
Spare tyre     with 1 pcs
Tent        Soft, PVC Material
Side Cover     without
Dimension(mm)   2560?250?720
Net Weight(kg)   360kg/385kg with CNG
Maximum Load(kg) 340/315 with CNG
20' container     8 pcs/30 sets
40' container     18 pcs/50 sets
40'HQ container    27 pcs/60 sets

Place of Origin:	Chongqing Chongqing in China
Model No:	FM110ZK
