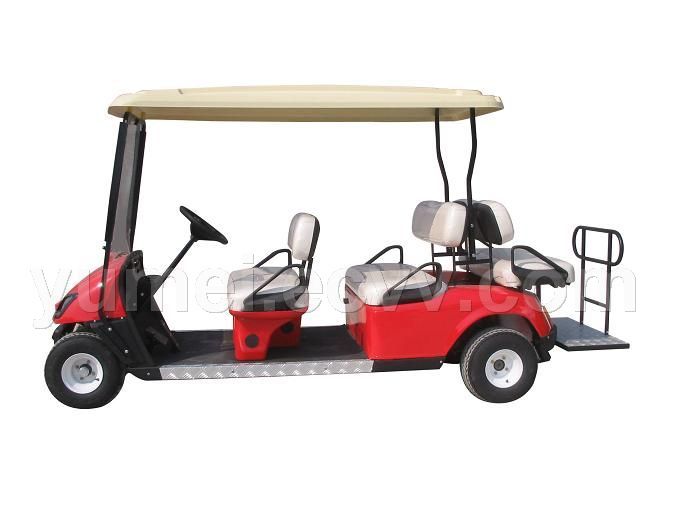

Golf Cart (YMGF-004)

Name: GOLF CART
Spec : YMGF-004
Detail:
A: Electric Power
The distance between front wheels (mm): 840
The distance between rear wheels (mm): 985
wheelbase(mm): 2420
Ground clearance(mm): 127
Turning Radius(mm): 3650
Max. Forward Speed: 25Km/H
Running distance of run on 1 full charge: 80KM
Max. load Capacity: 500kg
Climbing capacity: 25 degree Max
N.W.: 480KG
Battery: 6V180Ah? or 8V150Ah?
Motor: 2200W

B : Gas Power
Engine:250cc, water cooled four stroke, single cylinder(150cc is available)
Starter: Electric Battery: 12V/12Ah
Fuel Tank: 7L
Ranger per full tank: 150km
Max.forward speed:20-50km/h(optional)
Max.backward speed:12km/h
Climbing capability: 45 degrees
Dimensions: 3100?210?710mm
Packing Size: 3100?200?50mm (front wheel removed)
Ground clearance: 127mm
Max load capacity: 500kg
Turning radius: 3.15m
Tire: 18/8.5-8
Accessories(not free): Rain cover/Back mirror/Left and right-turning lamp/headlight/horn/brake lamp
Recommended Order qty: 18 pcs/40'HQ

Place of Origin:	China|
Model No:	YMGF-004
Brand Name:	YuMei
