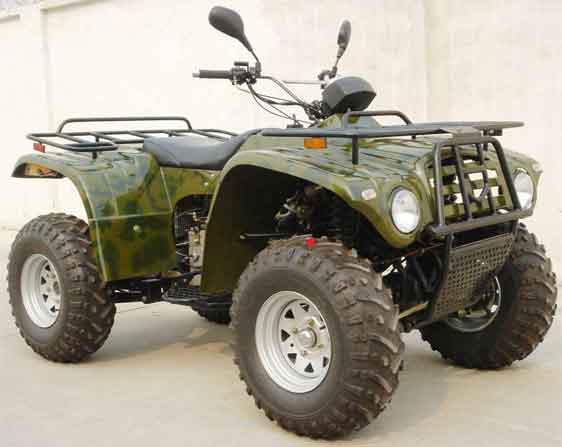

MODEL BR650ST
BRAND BR
ENGINE 4-STROKE, 2-CYLINDER
DISPLACEMENT 644ML
VALVE SYSTEM CAM SHAFT, TOP POSITION
COMPRESSION RATIO 8.4: 1
BORE* STROKE (MM) 76* 71
COOLING SYSTEM WATER COOLED
MAX POWER 23.1/4500 (17KW)
MAX TORQUE (N.M/r/min) 44/(2700-3300)
IGNITION BATTERY IGNITION, VACUUM CENTRIFUGE
LUBRICATION PRESSURE SPLASH
STARTING ELECTRIC
BATTERY 1PCS, 28 Ah, 12 VOLTS
FUEL TANK CAPACITY (GALLON) 2.64
FINAL DRIVE 4 * 4 WHEEL DRIVING
TRANSMISSION SHAFT DRIVING / REVERSE GEAR, N/1/2/3/4,
REVERSE GEAR W / REVERSE
BRAKE F: DISC / R: DRUM
TIRE SIZE F: 25 * 10- 12 R: 25* 10-12
FRONT SUSPENSION INDEPENDENT SUSPENTION
REAR SUSPENSION
WHEELBASE WHEEL DISTANCE: 1030MM
AXLE DISTANCE: 1530MM
MAX.OUTPUT POWER 17.0kW/4500rpm
MAX.SPEED ≥60km/h
MAX. LOADING 800KG
DRY WEIGHT 420KG
ECONOMIC FUEL CONSUMPTION ≤2.9L/100km
L * W * H 2250 * 1260 *1120 (MM) / 88.6 *49.6* 44.1 (INCH)
SEAT HEIGHT 9500MM
FUEL TANK VOLUME 12.0 L
MIN. GROUND CLEARANCE 240MM
COLOURS RED, BLUE, SILVER, CAMOUFLAGE
PACKING MATERIAL IRON FRAME
PACKING MEASUREMENT 2260?320?170(mm ) / 89.0* 52.0*46.1( inch)
PACKING QTY. 8PCS/20' FCL, 18PCS/40'FCL,
PACKING MODE 1PC/FRAME (CBU)
LEAD TIME 30DAYS
| Place of Origin: | Guangdong Jiangmen in China |
| Model No: | BR650ST |
| Brand Name: | br |
