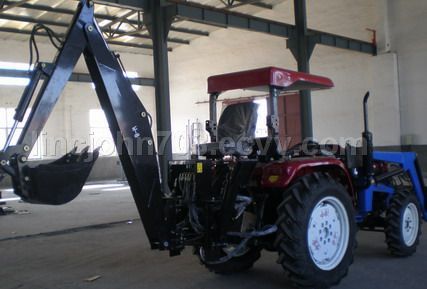

Backhoe

Detailed Product Description

Technical Parameters:
Model WF-RSL-6 WF-RSL-7 WF-RSL-8
Max. Digging Depth (mm) 1850 2150 2640
Max. Digging Radius (mm) 2800 3360 3930
Max. Digging Height (mm) 2500 3400 3510
Loading Height (mm) 1400 1760 2000
Swing Arc (deg.) 160 160 160
Bucket Rotation (deg.) 160 160 160
Connect Height (mm) 410 460 460
Connect Width (mm) 399 530 530
Valve Standard Pressure 16Mpa. 16Mpa. 16Mpa.
Load Capacity (m3) 0.036 0.045 0.054
Structural Weight (kg) 620 650 680
Shipping Dimensions (mm) 2200*900*2200 2200*900*2200 2200*900*2200
Bucket Width (mm) 300 400 500
Max. Digging Length (mm) 1410 1450 1610
Packing Method Iron Crate Iron Crate Iron Crate
