Scope of Application

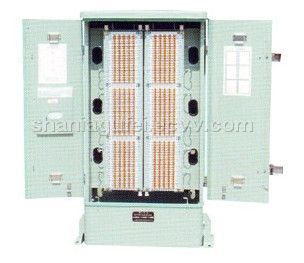

XF5-23 Cable Cross Connection Cabinet is used to join and splice cables of main and distributing cables of the cable network, and can be installed overhead, on the floor, indoors or outdoors.
Main Features
1,The clip-type screw-on connector in the box guarantees airproof wiring, concealment of wire contact ends, and reliable contact. No special tool is required for cable joining and connection. Convenient for operation and maintenance, and free of manual shelling of the insulating layer. The contact end is employed with silicone lubricating grease for seal to resist rust, water and moisture, showing safety and reliability.
2,Modular terminals are arranged in the box with 25 pairs as a basic unit and 4 blocks as 100 pairs of large units. Each modular terminal is numbered for purpose of convenient wire jumping and overhaul.
3,The main/distributing cables and jumper wires of the wiring module are provided with two-sided full chromatogram terminals, which cuts down the cable wire contact ends, eliminates potential risks, brings convenience for operation and overhaul and presents clean wire runs.
4,Wire winding panel can be opened being centering around Axle Y to an angle over 90ç™®ngle, facilitating cable connection and jointing.
5,The cable inlet at the bottom of the box is provided with rubber seal rings, preventing the invasion of dampness from the ground. When installed on the ground, the shutters on the front flaps help ventilate the air in and out of the box. Shutters are also framed with plastic mesh to keep dust and sand out.
6,Slots on the front and rear doors are provided with rubber seal strip to prevent the penetration of rains and moisture.
Technical Parameters
1,Climatic Requirement: 55/70/02 Ambient temperature: -55℃ - +55℃ Relative Humidity: 95% at 40℃ Atmosphere Pressure: 70 - 106Kpa
2,Insulation resistance: >5?04MΩ when tested in standard atmosphere pressure;
3,Contact resistance: < 5?0-3Ω when tested in standard atmosphere pressure;
4,Voltage endurance: 50Hz(AC) 500V when tested in normal atmosphere and showing no breakdown and flash-over in 1 min.
5,Good rust and water resi
| Place of Origin: | Zhejiang Shaoxing in China |
| Model No: | XF5-23 |
| Brand Name: | HongSheng |
