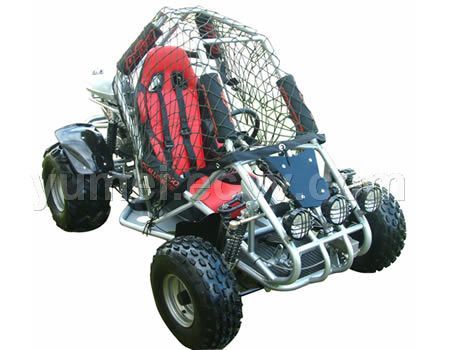

Go Kart (YMGK-003)

* Name: GO Kart

* Spec : YMGK-003

* Detail:

1) Engine: water cooled, 250cc

2) Max. load: 150kg

3) Max. speed: 70km/h

4) Max. power: 11kW/7, 000rpm

5) Max. torque: 17. 6N. m/5, 500rpm

6) Bore x stroke: 72 x 60mm

7) Compression ratio: 10: 1

8) Transmission type: chain

9) Full tank volume: 10L

10) Battery: 10V, 9Ah

11) Start way: electric start

12) Tire:

* Front tire: 19 x 7. 00-8 b)

* Rear tire: 22 x 11-10

14) Ignition type: CDI

15) Brake way: disc brake

16) Ground clearance: 168mm

17) Radiator: 770ml

18) Water tank: 420ml

19) Wheelbase: 148cm

20) Model size: 2, 284 x 1, 160 x 1, 677mm

* Outer packing:

* Packing dimensions: 2300 x 1, 160 x 750mm

* N. W. : 238kg

* G. W. : 263kg

* Conveyance:   Qty/20'ft: 15pcs; Qty/40' HQ: 30pcs
