Embedding Center

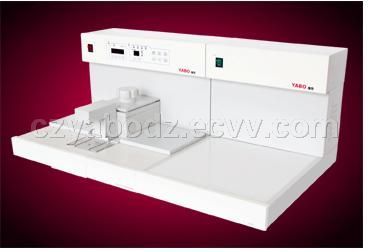

The Yabo 400 tissue embedding center incorporates two separate components, the cold plate and the heated paraffin dispensing module. Compact dimensions, ease of operation, and excellent standards of convenience and safety characterize. All instrument functions - including the automatic starting time - are individually programmable at just the press of a button. Large and temperature-controlled hand rest areas give the user maximum freedom of movement. For orienting specimens from biopsies and other, especially very small specimens, an adjustable magnifier is available as an option.
Characteristics:
1. Work time and day can be programmed automatically
2. Using low position paraffin flow mode to prevent leak paraffin.
3. Controlling paraffin flow not adopt valve to make sure more stable and credible.
4. Alarm to remind the temperature losing control.
5. At the same time, it allows processing many samples on the large working surface.
6. Paraffin flow out control by hand switch or foot switch.
Technical Parameters:
YABO400
Nominal supply voltage: 220V/50HZ or 110V/60HZ
Maximum power draw: 1500VA
Working temperature: From 55º C-80º C increment 1º C
Capacity:
Paraffin reservoir: 4L
Cassette: 1.4L
Dimensions(mm): 560 × 535 × 380
Weight: 25kg
Cryo Console
Nominal supply voltage: 220V/50HZ or 110V/60HZ
Maximum power draw: 100VA
Working temperature: From 20º C to -15º C increment 1º C
Dimensions(mm): 400 × 535 × 380
Weight: 24kg

Place of Origin:	Jiangsu Changzhou in China
Model No:	YABO400
Brand Name:	YABO
Package:	Wooden packing
Delivery Time:	7
