Video Input: 1 -- 32 Channel Video Inputs, 17-32ch video input (Optional)
Audio Input: 8 CH Audio input (Optional)
Fps per Card: 480fps/NTSC, 400fps/PAL

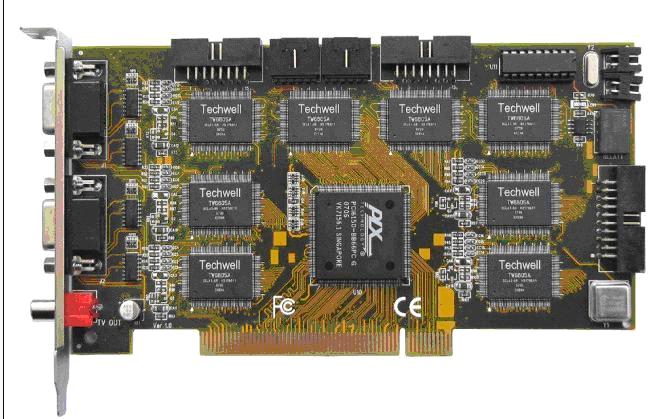

Chipset: TW6805, 10-bit ADC with 4H comb filter
Display Screen: 1 / 4 / 6 / 9 / 10 / 13 / 16 / 25 / 32 / Full Screen
Color Adjust: Adjustable Light, Contrast, Hue, Saturation by Individual Camera
Resolution: 160X120 / 240X180 / 320X240 / 352X288 / 480X360 / 640X480
Record Mode: Continuous / Schedule Recording / Alarm Triggering
Compression: Enhanced MPEG4 / H.264 Format, Frame Size: .1K~2.5K
Multi-task: Monitoring / Recording / PTZ Control / Remote / Backup
Motion Detect: 16 Zone X Multi Area for each camera
Storage: HDD / VDRAM / CD-RW / DAT / MO / ZIP / RAID. Up to 24 drives
PTZ: RS422 / RS485 Controlled PTZ & Light / Power / Wiper
Playback Speed: Forward / Back / Step / Fast 1X,2X,4x,8X / Slow 1X,1/2 X,1/4 X,1/8X
User Right: Multi User with Personal User name/Password/User rights, Remote Users
O.S.: Windows 2000/XP, Windows Vista
Water Mark: Water Mark, Not Editable & Not Replaceable
Network: PSTN / ISDN / LAN / ADSL / Internet
Remote: LAN & ADSL: Real Time In 320X240, PSTN: 5-25fps In QCIF
IE Remote View: Remote Browse by MS Internet Explorer
Remote Control: Full Function Remote Control & Remote Audio Transmission
Remote Rec: Remote Playback, Remote Recording, & Emergency Recording
Speed dome: Pelco-D / Pelco-P Protocols & Sequence
E-map: electronic map that lays out the location of video camera (At Server)/ lays out the location of Server (At Client)
Display Mask: Support Camera mask (Just not show on Screen), Password to Playback Recording Files
Duplex Voice: Server & Client can talk by microphone
Alarm I/O port: Support 6 ch Alarm signal input & 4 ch Relay output ( SV Alarm I/O Card Needed)
Watchdog: Hardware watchdog
TV OUT: All channels’ video can be switched to Monitor or TV
| Place of Origin: | Shenzhen in China |
| Model No: | VG-SV48DB |
| Payment Terms: | T/T(Bank Transfer), |
| Minimum Order: | Piece/Pieces 1 |
| Supply Ability: | Piece/Pieces|50000|Month |
| Package: | Retail packing |
| Delivery Time: | 3-5days |
