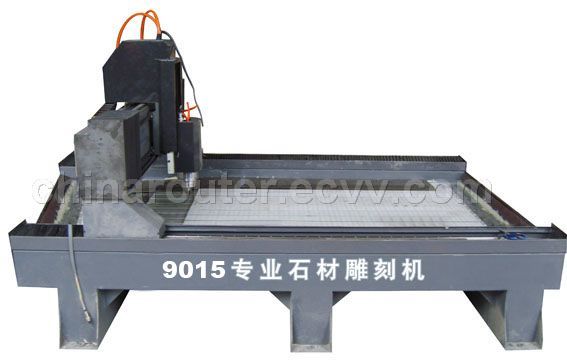

CNC Stone carving machine JK-9015S
"Machine performence:
1.The three axle uses the straight line guide rail with steady movement and high accuracy.
2.This machine can be used to carve and cut on marble, granite, tombstone, cobblestone and so on.
It can engrave drawings and writings.
3.The complete machine uses the steel structure seamless welding. The steel is good and does not distort with big rigidity.
4.The permanent power main axle electrical machinery. The efficiency is high.
5.The machine adopts embedded completely off-line control system,which makes it work more nimbly.
Machine features:
1)Particular style, competent for elaborate engraving and cutting.
2)3.3-6.6KW permanent spindle motor.
3)CNC engraving machine.It is easily operated and work more quickly.
4)Be compatile with type 3, Artcut, Artcam software.
5}Memory to ensure the processing point when the blade is broken or postpone stitution. Specific saving mode of different points.
6)The machine can be furnished with DSP control handhandle if you need.
Parameter:
Model: JK-9015
Working area: 900?500mm
Z-axis working area: 200mm
Maximum works speed: 10m/min
Maximum machine speed: 20m/min
Machine size: 1480?200mm
Machine precision: 0.005mm
Working power: AC380V/50HZ
Drive motor: Stepper motor
Software running environment: Windows98/2000/xp
machine power: 2KW
Spindle power: 3.3-6.6KW(Permanent power)
Command:G code*,u00*,plt
Spindle speed: 0-24000rpm/min
Net weight: 850KG
Gross weight: 1000KG
Packing type: wooden crate packing
Packing size: 1520?500?800mm
| Place of Origin: | Shandong in China |
| Model No: | JK-9015 |
| Brand Name: | JK |
