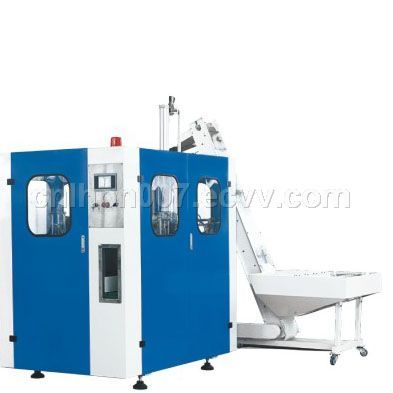

CM-A2 Full automatic blow molding machine

Detailed Product Description

CM-A2 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

1. Reasonable design, full automatic control, save power and labor. Adopt high quality Components.

2. Feeding system carries the preforms by robot automatically.

3. Infrared oven heater adopts the quartz lamp to heat the PET tube.

4. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.

Main part:
Pneumatic part	Valve	SMC
Pneumatic part	Cylinder	SMC
Electric part	PLC	LG Mitsubishi
	Operating system	LG /HITECH
	Relay	OMRON
	Infrared thermometer	America Raytek
Note	All of the electrical components adopts CE、UL、CCC approved international advanced high-tech product.
Main parameter:
Model	CM-A2
Productivity	Depend on bottle design	1800-2000PCS/H
Product type	Body diameter	20mm-100mm
	Height	50mm-350mm
	Neck diameter	15mm-38mm
Mold	Cavity	2cavities
	Mold thick	240mm
	Mold	500*500mm
Main machine power	Electrical source power	380v 3Phase /220v 3Phase 50/60HZ
	Power	25kw
	Really use power	6kw
Air source	LP air compressor	1.0m3/min 1.0MPa 1set (7.5KW)
	HP air compressor	0.7m3/min 3.0MPa 2sets (each set 9KW)
	Air dryer	1.0m3/min 3.0MPa 1set
Cooling water	Cooling water	10L/min
Size	LWH	190812801920mm
Size	Weight	2000kg
Auxiliary equipment（preform unscrambler）	LWH	276106186mm
Auxiliary equipment（preform unscrambler）	Weight	250kg
Resin available		PET

Place of Origin:	Zhejiang in China
Model No:	CM-A2
Brand Name:	lonhon
Payment Terms:	L/C,T/T(Bank Transfer),
Package:	wooden case
Delivery Time:	55 days
