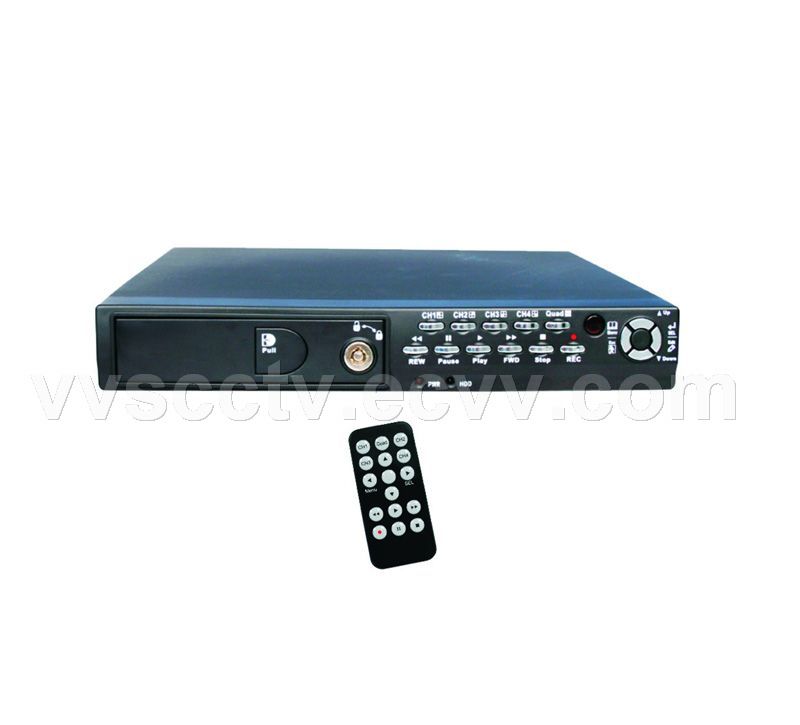

Stand Alone DVR (VVS-D2004F)

Detailed Product Description

Model No.	VVS-D2004F
Video Input	4CH inputs (BNC)
Video Output	1 channel output
Recording Frame	PAL: 25f/s/ch NTSC: 30f/s/ch
Display Frame	NTSC: 120 frames (4x30 frames) PAL: 100 frames (4x25 frames)
Recording Resolution	Quad Mode) NTSC: 30 frames PAL: 25 frames, (Each Mode) NTSC: 7.5 frames PAL: 6.25 frames
Compression	M-JPEG
Record Image Quality	3 levels adjustable (High, Middle and low)
Record Mode	Motion detection, scheduled
Video Search	Search by event, time and channel
Playback	One channel
Motion Detection	area selection & sensitivity adjustment for each camera
Storage Material	IDE connector, Support 250G HDD.
Operation	Remote control
Backup / Upgrade	USB back up and USB upgrade
Weight	1.5KG
Dimensions (DxWxH)	25023538mm
