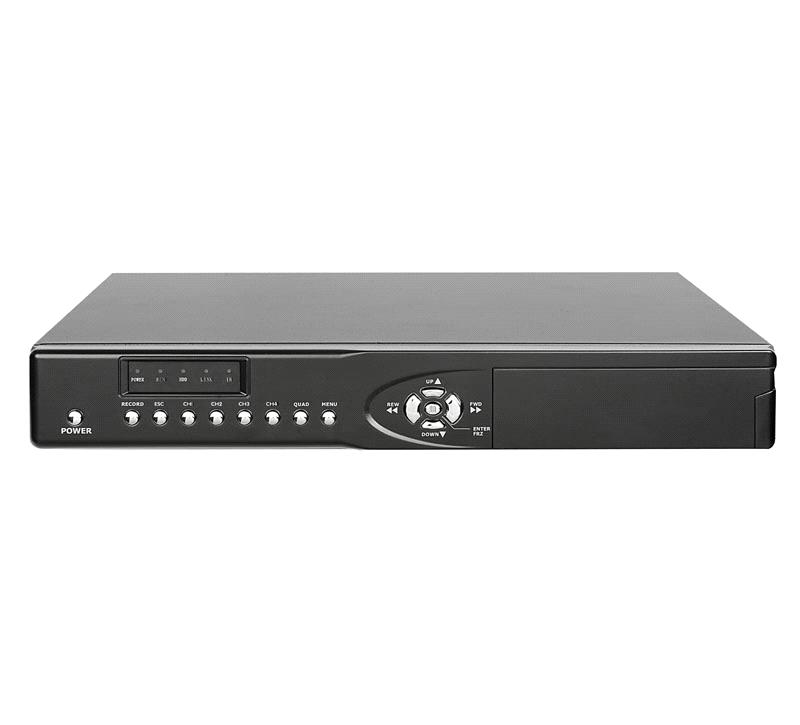

Stand Alone DVR (VVS-D7204)

Detailed Product Description

model no.	vvs-d7204
video input	4ch inputs (bnc)
video output	2 channel output (1bnc and 1 s-video), vga optional
recording frame	pal: 25f/s/ch ntsc: 30f/s/ch
display frame	pal: 25f/s/ch ntsc: 30f/s/ch
recording resolution	pal: cif: 352x240 (cif) ntsc: cif: 352x288 (cif) pal: 704 x 288 (half d1) ntsc: 704 x 240 (half d1)
compression	m-jpeg
record image quality	3 levels adjustable (high, middle and low)
record mode	manual, alarm, motion detection, scheduled
video search	search by event, time and channel
playback	one channel or four channel synchronously
motion detection	6×8 motion detection windows, sensitivity adjustable
audio	4 channel synchronously inputs and i channel output
alarm	4 channel alarm inputs and i channel output
network	support internet and lan
storage material	ide connector, support 500g hdd.
operation	triple operation, support ps2 mouse control , remote control
backup / upgrade	usb back up and usb upgrade
vga	vga interface
weight	2kg
dimensions	300mm（l）×272mm（w）×58mm（h）

Place of Origin:	Shenzhen in China
Model No:	VVS-D7204
Brand Name:	VVS
Payment Terms:	T/T(Bank Transfer),Western Union,
Delivery Time:	3-7
