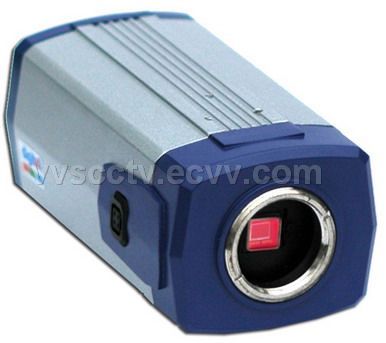

Box Zoom Camera (VVS-55/ VVS-55SQ/ VVS-55Q/ VVS-55H)

Detailed Product Description

Module VVS-55 VVS-55SQ VVS-55Q VVS-55H
Image Sensor 1/4 Sharp 1/4 Sony 1/3 Sony 1/3 Sony
NO. of Effective Pixels PAL: 500 (H)X582(V); NTSC: 510(H)X492(V)
Horizontal Resolution 420tvl 480tvl
Minimum Illumination 0.1 Lux
S/N Ratio More than 48dB
Electronic Shutter 1/50~1/100,000sec(PAL),1/60~1/100,000sec(NTSC)
BLC ON/OFF
AWB Automatic
AGC ON/OFF
Iris Control DC/ Video
Gamma 0.45
Video output BNC BNC 1.0Vp-p 75ΩTerminated
Sync Mode INT
Lens Mount CS/C with Ring
Operation Temperature -10 ℃ to +50 ℃ RH95%MAX
Power Consumption DC 12V+/-10%
Weight 500g
Place of Origin:China|
Model No:VVS-55/ VVS-55SQ/ VVS-55Q/ VVS-55H
Package:Standard Packing,Safety Packing
Delivery Time:3-7
