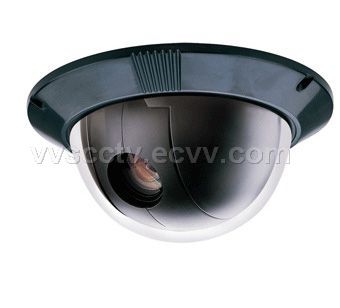

Dome Camera (VVS-PTZ830)

Detailed Product Description

Series	VVS-PTZ830
Signal system	PAL/NTSC
Image sensor	1/4-inch Sony Ex-view HAD CCD
Effective pixels	PAL: (H) 752 x (V) 582
Effective pixels	NTSC: (H) 768 x (V) NNTSC: (H) 768 x (V) 494
Video output	1. 0Vp-p
Horizontal resolution	480TV lines
S/N ratio:	480dB (AGC off)
Minimum illumination	0. 3lux/0. 01lux (Day and Night)
Focus	Auto focus
Focus distance	4. 1-73. 8mm /3. 4-122. 4mm/ 3. 9 to 85. 8mm/3. 4-122. 4mm
Optica Zoom	18x, 22X, 23X, 26X, 27X, 30X, 35X, 36X (10x digital)
White balance	Auto
Black light compensation	on/off
Pan rotation	360 degrees
Pan rotated speed	0. 5 to 130 degrees/seconds
Vertical rotation	0 to 90 degrees
Vertical rotated speed	0. 5 to 130/seconds
Communication protocol	RS485
Control	up and down, left and right, zoom 80 preset position
Horizontal scanning	on/off
Power supply	12 to 15V DC, 2A
Operating temperature	-20 to +60 degrees Celsius
Operating humidity	< 95%
Power consumption	20W
Optional baud rate	1200, 2400, 4800 and 9600bps
Rotate speed	0. 5 to 200/seconds (maximum cruise speed 350 degrees, 64 level shift)
Auto flip function	tilt rotation range 90 degrees, 180 degrees auto flip
Scan functions:	two points scan can set speed and stick time, 128 degrees scan can set scan speed
128 preset positions:	programmable setting cruise speed between presets and presets stick time, 1 to 255 seconds preset stick time
Cruise routes	8 group programmable cruise
Fan & Heater	Each group consisting 16 preset positions, fan, heater: fan and heater are controlled auto-intelligently

Place of Origin:	Shenzhen in China
Model No:	VVS-PTZ830
Payment Terms:	T/T(Bank Transfer),Western Union,
Package:	Standard Packing,Safety Packing
Delivery Time:	3-7
